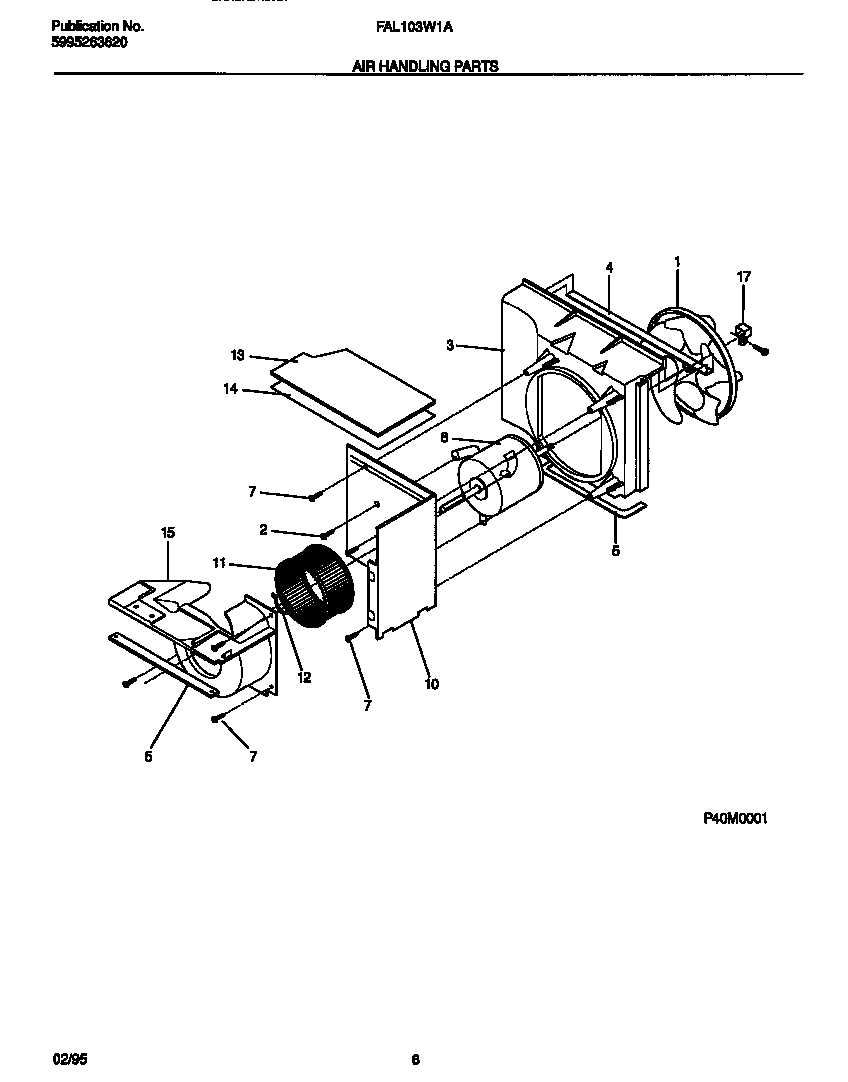

FAL103W1A2 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	BLADE-FAN
2	131202300 Frigidaire Screw
3	WCI 3202950
4	SEAL-SHROUD COND
5	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
7	134178901 Frigidaire Screw
8	WCI 5303202807
10	BULK HEAD-AAIR SYSTEM
11	WCI 5303210236
12	WCI 5303012110
13	WCI 3202957
14	PAD – COVER
15	SCROLL-EVAPORATOR
17	CLAMP – FAN BLADE
