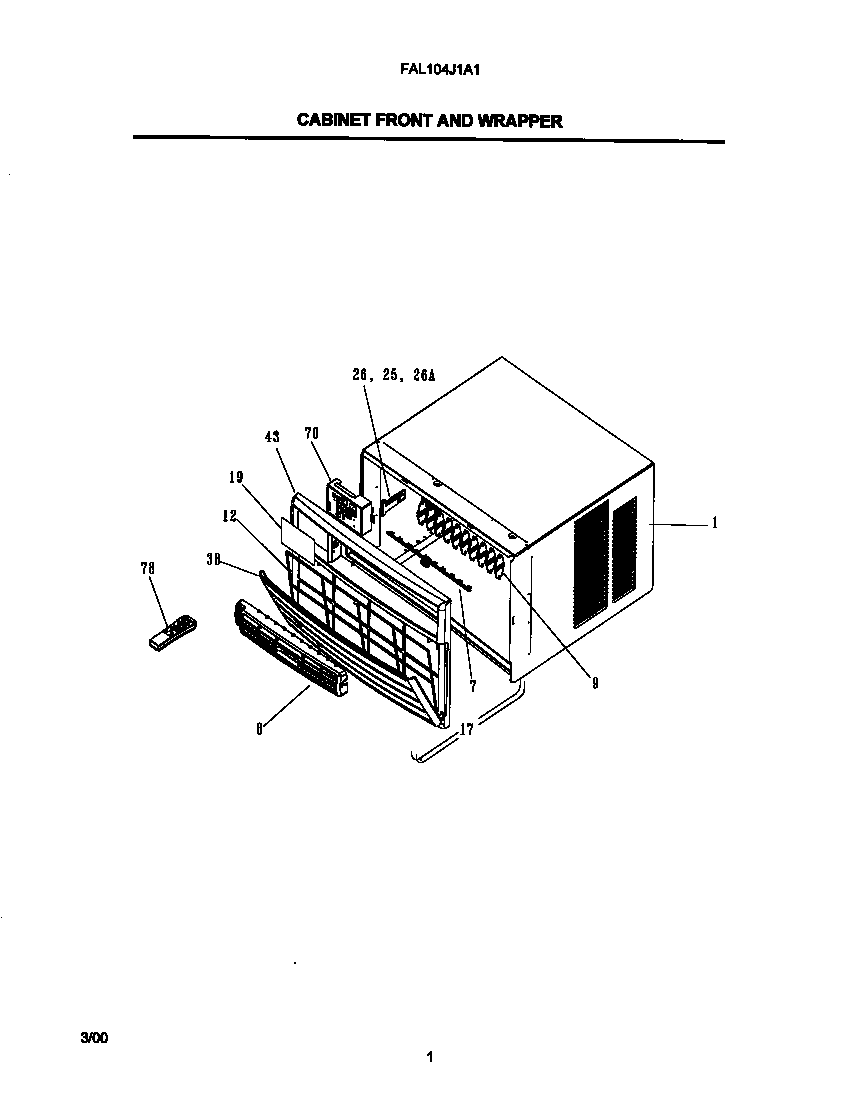

FAL104J1A1 02 – CABINET FRONT AND WRAPPER

FAL104J1A1 02 – CABINET FRONT AND WRAPPER

Written by

in

FAL104J1A1 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
*94520WCI 309330201
*94521HORIZ LOUVER ASSY.
1WCI 309609212
2WCI 5304414101
7WCI 309638601
8+HORIZ.LOUVER
9WCI 309342001
12FILTER-NO FRAME 22“T/C
17FRNT/PNL ASSY COMPL.BRND.22TC
19WCI 309340903
21SEAL
25WCI 309328602
26Handle,vent door
38WCI 309639601
43FRAME-FRNT
70Enclosure,elec control mt
78PKG-JY-TAI TRANS W/BATTERIES
78WCI 309342604
