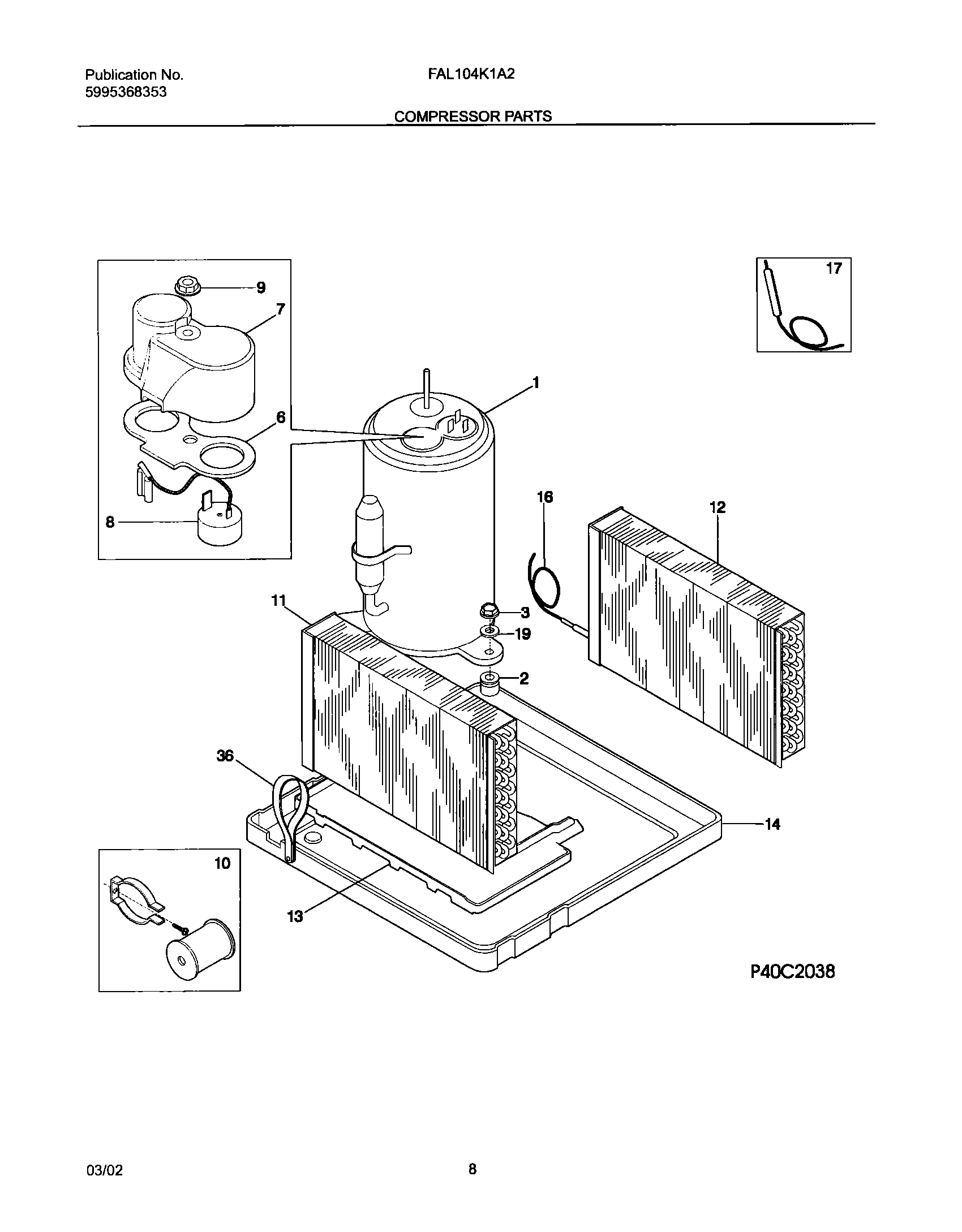

FAL104K1A2 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WCI 309112501
1	WCI 5304419112
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-TERMINAL
7	COVER-TERMINAL
8	WCI 5303295567
9	WCI 5303211017
10	WCI 5303317601
11	WCI 309606101
12	WCI 5304419796
13	WCI 309606001
14	WCI 5304419798
16	Capillary Tube,45 inch long ,cut to length
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
19	WASHER,COMPRESSOR MTG
36	WCI 5303303558
