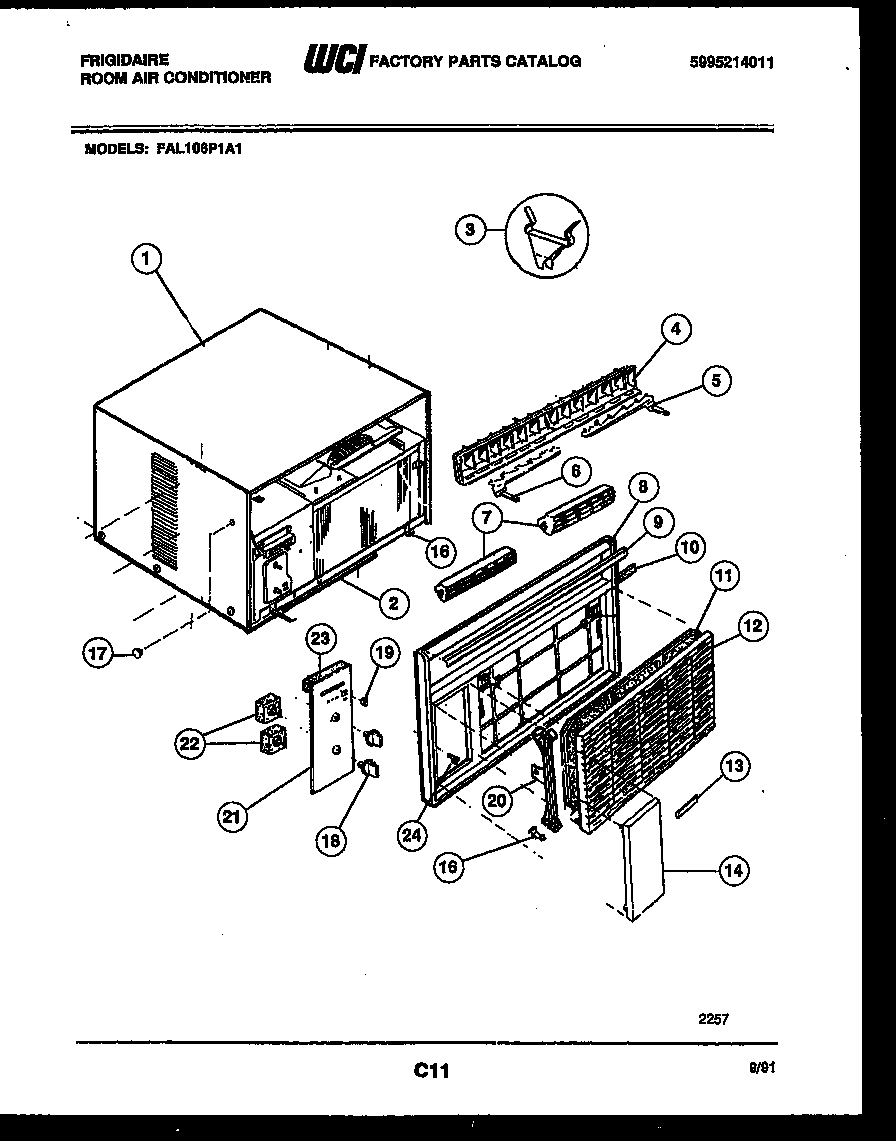

FAL106P1A1 02 – CABINET PARTS

FAL106P1A1 02 – CABINET PARTS

Written by

in

FAL106P1A1 02 – CABINET PARTS

Products

PositionProduct
1BWCI 5303271903
1WCI 5303271901
1AWCI 5303210207
2SEAL
3WCI 5303001844
4VERT. LOUVER & LINK ASSY.
5LINK – VERT LOUVER RH
6LINK VERTICAL LOUVER LH
7FRAME-HORIZONTAL LOUVER
8WCI 3204214
9WCI 08016330
10WCI 5308014101
11FILTER, FRAMED
12PANEL – FRONT
13PLATE-NAME
14WCI 5308016198
16CLIP-FRONT TO BASE
17PLUG BTN
18WCI 5308016109
19WCI 5303002189
20WCI 5308017294
21WCI 3202876
22WCI 5303001775
23WCI 5303001984
24SCREW-FRONT
