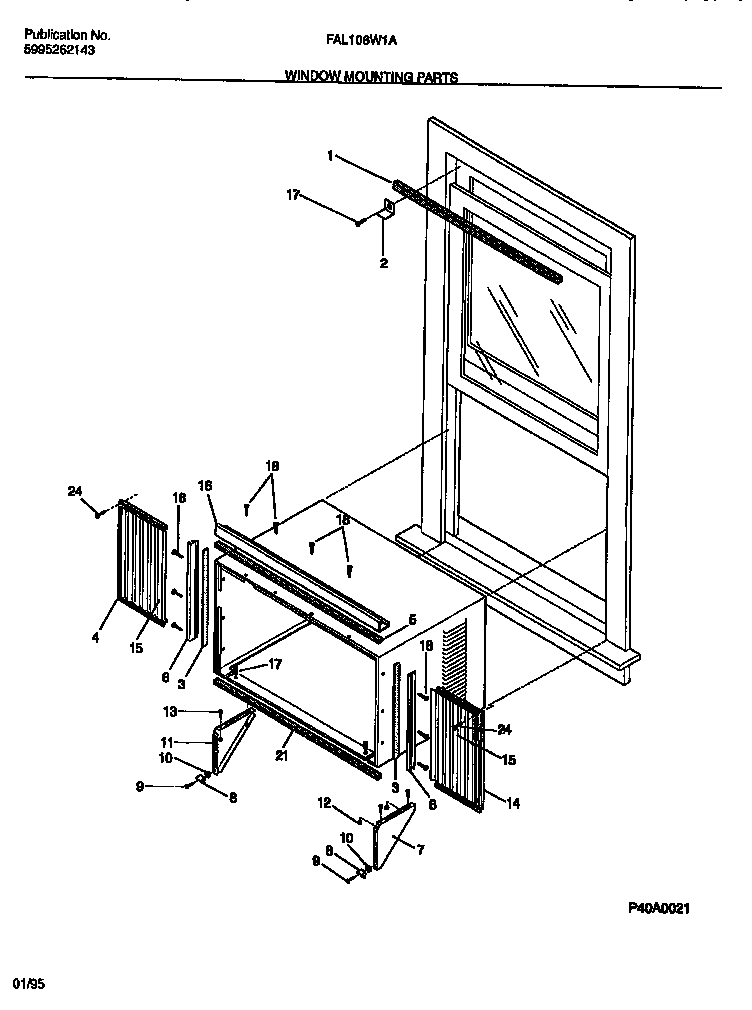

FAL106W1A2 06 – WINDOW MOUNTING PARTS

FAL106W1A2 06 – WINDOW MOUNTING PARTS

Written by

in

FAL106W1A2 06 – WINDOW MOUNTING PARTS

Products

PositionProduct
*01361WCI 5303301887
15304407729 Frigidaire Air Conditioner Seal
2BRACKET
3SEAL-RETAINER (NON-ILLUSTRATED)
4FRAME EXTENSION LH
5WCI 5303207200
6WCI 5303301250
7WCI 5303301254
8BRACKET – SUPPORT
9SCREW – SILL SUPT
10NUT – BRACKET
11WCI 5303301255
12316205500 Frigidaire Oven Nut
13SCREW – SUPPORT, 4
14FRAME EXTENSION RH
15ACCORDIAN
16TOP RAIL
17SCREW-WOOD
18134178901 Frigidaire Screw
21WCI 531494603
24WCI 3002801
