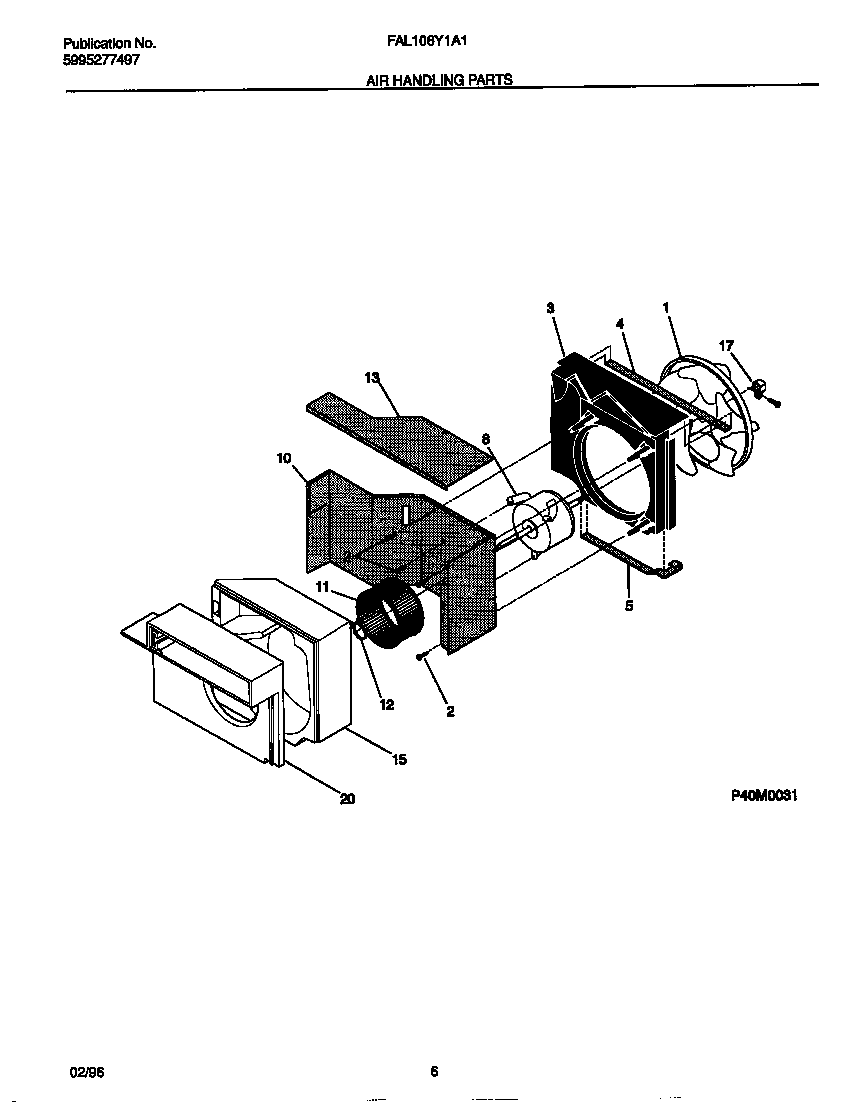

FAL106Y1A1 04 – AIR HANDLING PARTS

Written by

Products

Position	Product
1	BLADE-FAN
2	131202300 Frigidaire Screw
3	WCI 3202950
4	SEAL-SHROUD COND
5	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
8	WCI 5303202807
10	WCI 5303316617
11	WCI 309608901
12	WCI 5303012110
13	WCI 309605901
15	WCI 309605701
17	CLAMP – FAN BLADE
20	WCI 309605801
