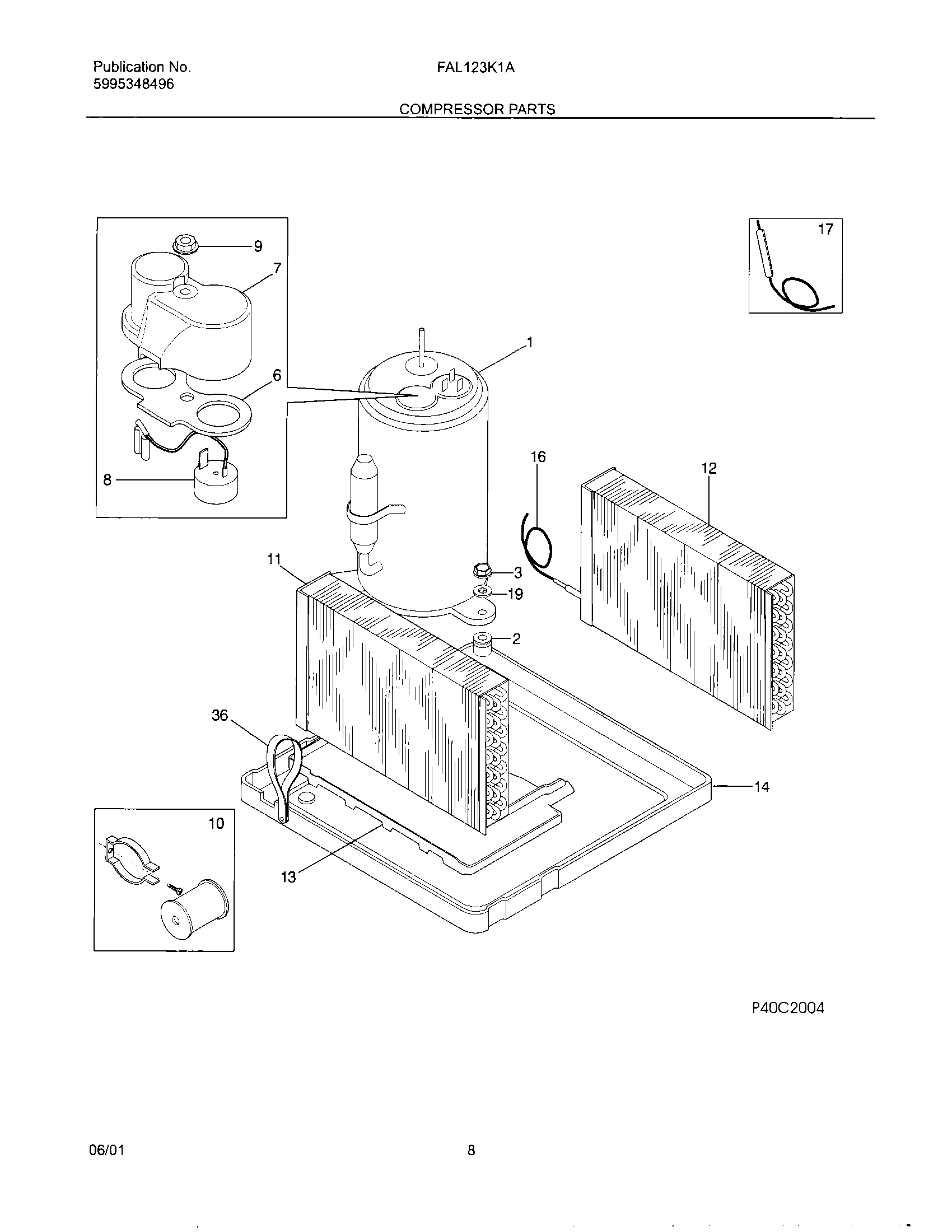

FAL123K1A2 09 – SYSTEM/COMPRESSOR

Written by

Products

Position	Product
NI	WASHER,COMPRESSOR MTG
1	Compressor
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-COVER
7	WCI 3206230
8	OVERLOAD PROTECTOR
9	WCI 5303211017
10	WCI 5303317601
11	Evaporator
12	Condenser
13	WCI 309606001
14	Base-compressor,22TC Staked
16	Capillary Tube,45 inch long ,cut to length
19	WCI 309112501
36	WCI 5303303558
