FAL123S1A3 02 – CABINET FRONT AND WRAPPER – Aparts

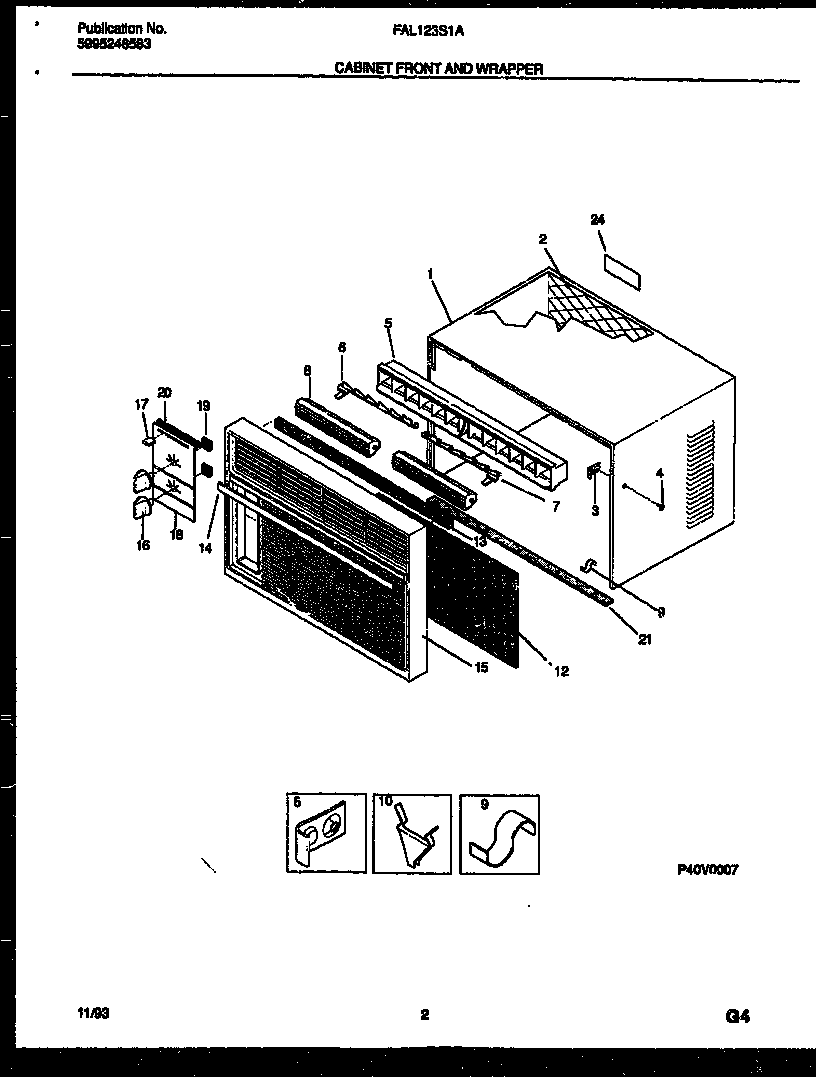

FAL123S1A3 02 – CABINET FRONT AND WRAPPER

Products

Position	Product
1	WCI 5303301242
2	WCI 5303301025
3	NUT - FRONT LOCK
4	SCREW
5	VERT. LOUVER & LINK ASSY.
6	WCI 5303293787
7	WCI 5303293786
8	LOUVER-HORIZ.
9	CLIP-FRONT TO BASE
10	WCI 5303001844
11	INSERT
12	FILTER-AIR
13	WCI 5308014101
14	WCI 5303300134
15	WCI 5303300132
16	WCI 5303017300
17	WCI 5303271479
18	WCI 5303300135
19	WCI 5303001775
20	WCI 5303001984
24	WCI 5303300131
