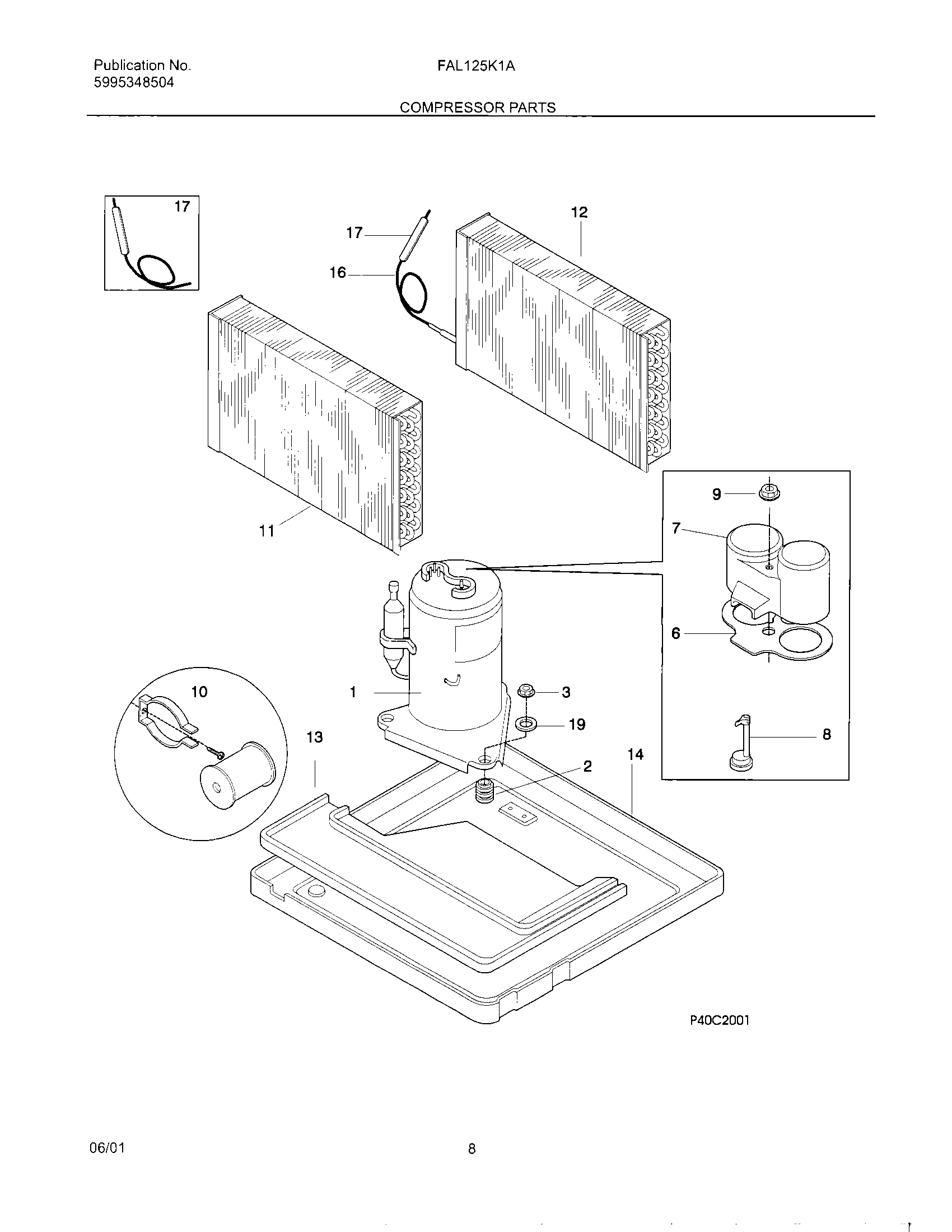

| NI | WASHER,COMPRESSOR MTG |
| 1 | WCI 309603107 |
| 2 | GROMMET,COMPRESSOR MTG ,(3) |
| 3 | NUT,COMPRESSOR MTG ,(3) |
| 6 | WCI 5303291330 |
| 7 | WCI 5304416126 |
| 8 | WCI 5304419795 |
| 9 | WCI 5303294292 |
| 10 | WCI 5303317601 |
| 11 | Evaporator |
| 12 | Condenser |
| 13 | WCI 309606001 |
| 14 | WCI 5304414417 |
| 16 | Capillary Tube,45 inch long ,cut to length |
| 19 | WCI 309112501 |
| 36 | WCI 5303303558 |
