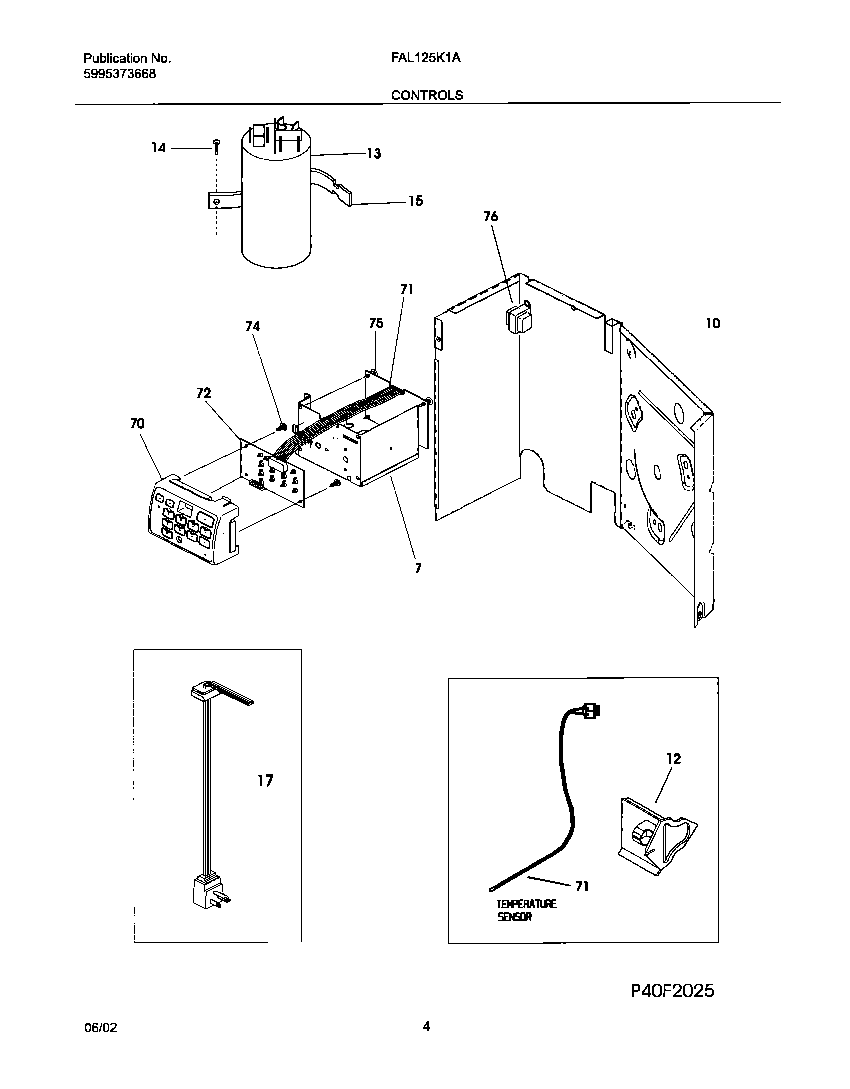

FAL125K1A4 05 – CONTROLS

FAL125K1A4 05 – CONTROLS

Written by

in

FAL125K1A4 05 – CONTROLS

Products

PositionProduct
NI134178901 Frigidaire Screw
NIProtector,rbn wire sleeve
NIWCI 309111201
7Control Box
10WCI 5303316617
12THERMISTOR HOLDER
13WCI 5304426337
14Screw,Ph truss hd ,8-18 x 0.38 ,ground
15WCI 309111901
17WCI 309343104
70Enclosure,elec control mt
71WCI 309340503
72PC Board,input
743201861 Frigidaire Screw
75PC BOARD-SUPPORT HARDWARE
76WCI 309111601
