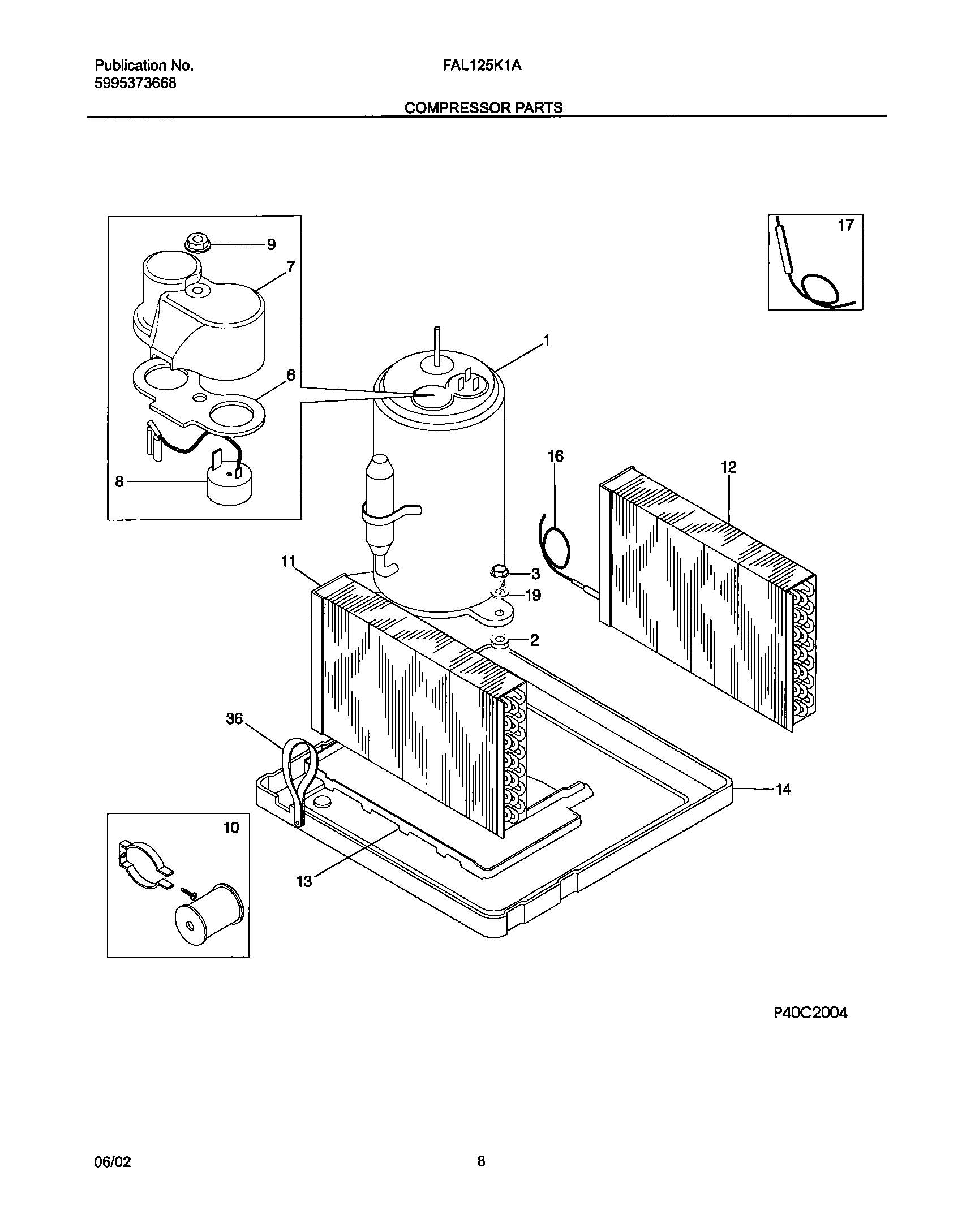

FAL125K1A4 09 – COMPRESSOR PARTS

Written by

Products

Position	Product
NI	WCI 5303290357
NI	WCI 309112501
1	WCI 309603107
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303291330
7	WCI 5304416126
8	WCI 5304419795
9	WCI 5303294292
10	WCI 5303317601
11	Evaporator
12	Condenser
13	WCI 309606001
14	WCI 5304414417
16	Capillary Tube,45 inch long ,cut to length
17	Tube-process
19	WASHER,COMPRESSOR MTG
36	WCI 5303303558
