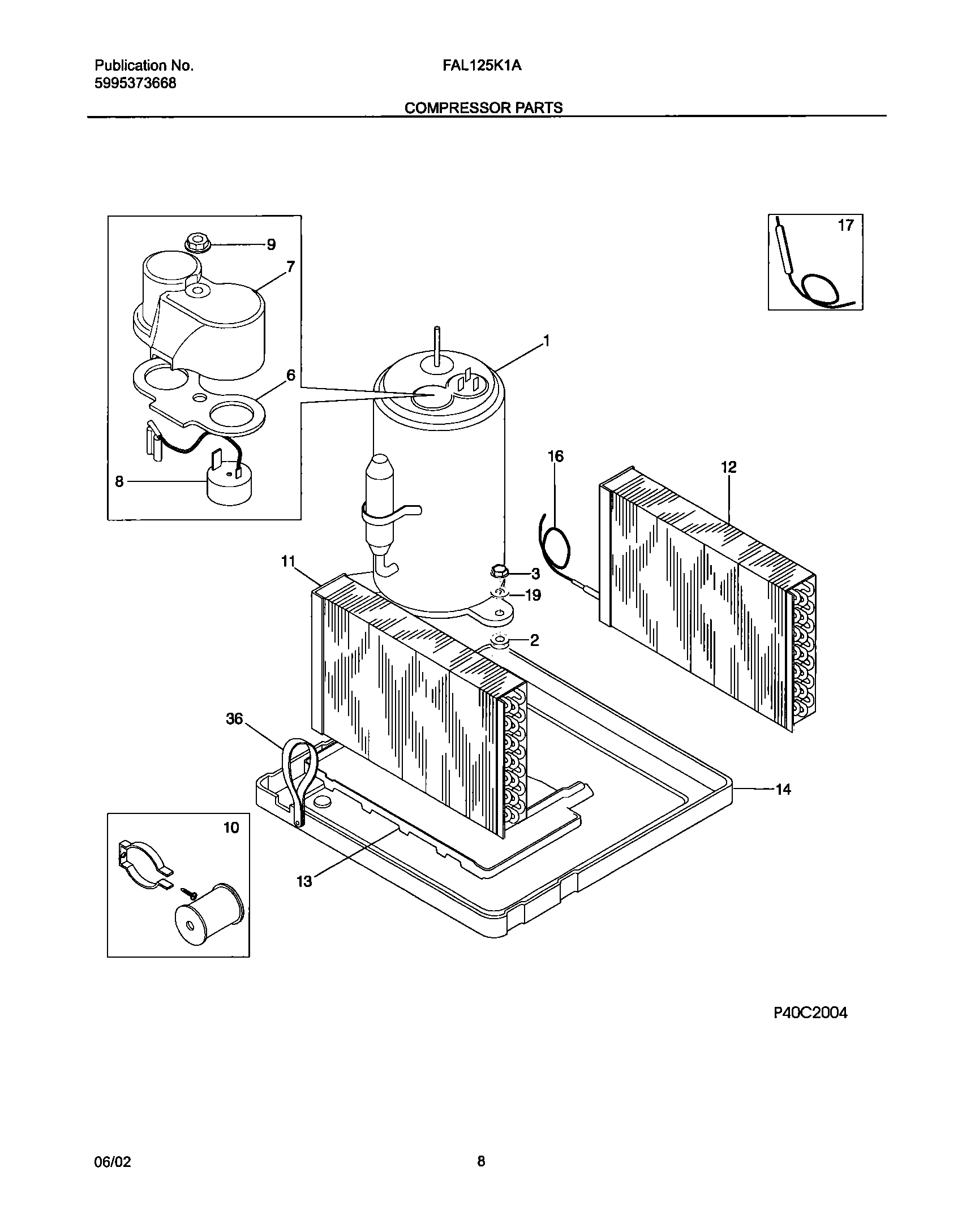

FAL125K1A5 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WCI 309112501
NI	WCI 5303290357
1	WCI 5304414728
2	GROMMET,COMPRESSOR MTG ,(3)
3	NUT,COMPRESSOR MTG ,(3)
6	GASKET-COVER
7	WCI 3206230
8	OVERLOAD PROTECTOR
9	WCI 5303211017
10	WCI 5303317601
11	WCI 309635501
12	Condenser
13	WCI 309606001
14	Base-compressor,22TC Staked
16	CAPILLARY TUBE
17	WCI 5304415036
19	WASHER,COMPRESSOR MTG
36	WCI 5303303558
