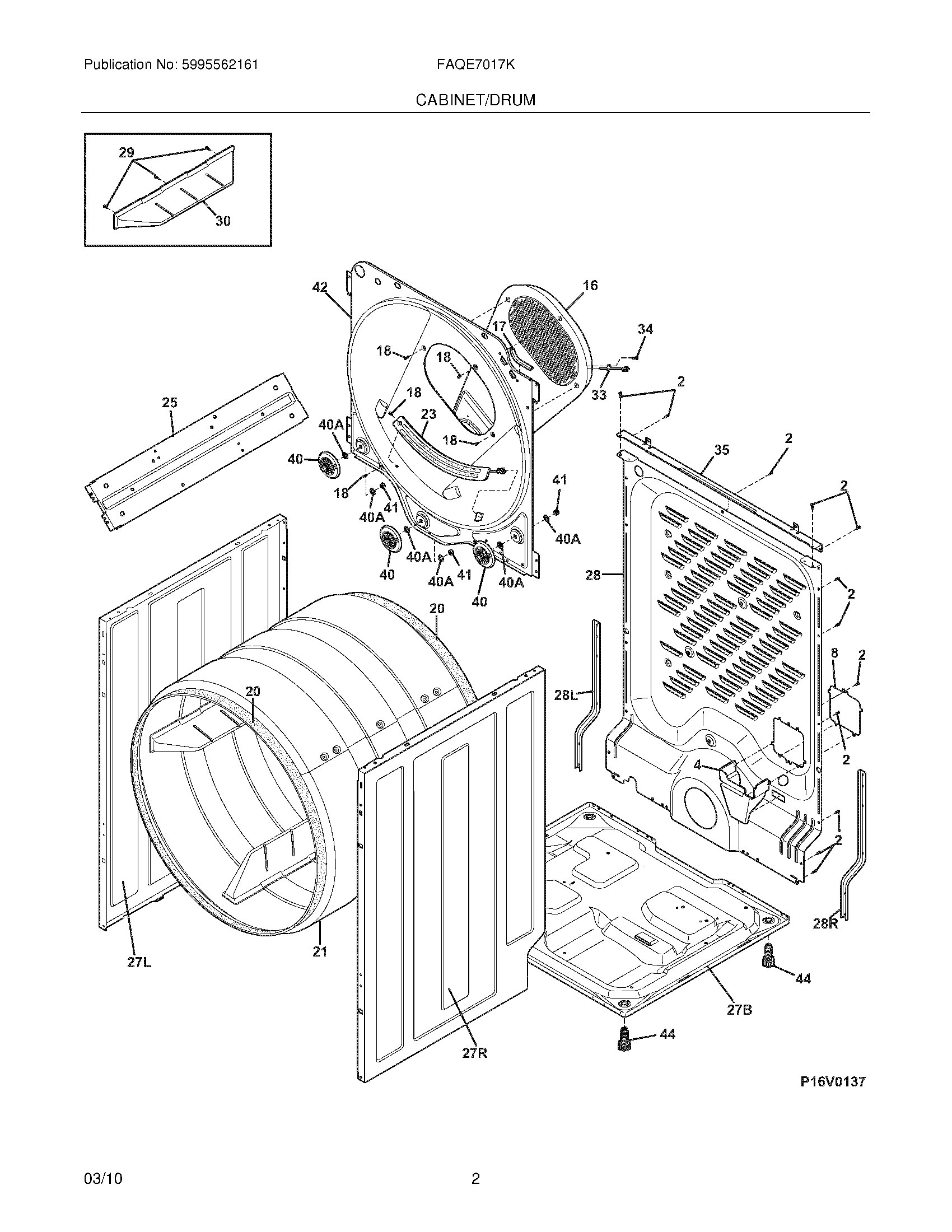

FAQE7017KN0 03 – CABINET/DRUM

Products

Position	Product
NI	134930800 Frigidaire Harness
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	134716200 Frigidaire Retainer
4	WCI 134792200
8	134694400 Frigidaire Cover
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	WCI 134705900
21	WCI 134711900
23	134786110 Frigidaire Moisture Sensor
25	WCI 134912100
27R	WCI 134690445
27L	WCI 134690345
27B	134690203 Frigidaire Base
28	WCI 134713200
28L	WCI 137029900
28R	WCI 137066800
29	131205100 Frigidaire Screw
30	WCI 137116800
33	SAFETY THERMSTAT
34	131243700 Frigidaire Screw
35	WCI 134706200
40	5304523155 Frigidaire Washer Kit
40A	134716700 Frigidaire Washer
41	134716800 Frigidaire Nut
42	137556623 Frigidaire Bulkhead
44	WCI 137029700
