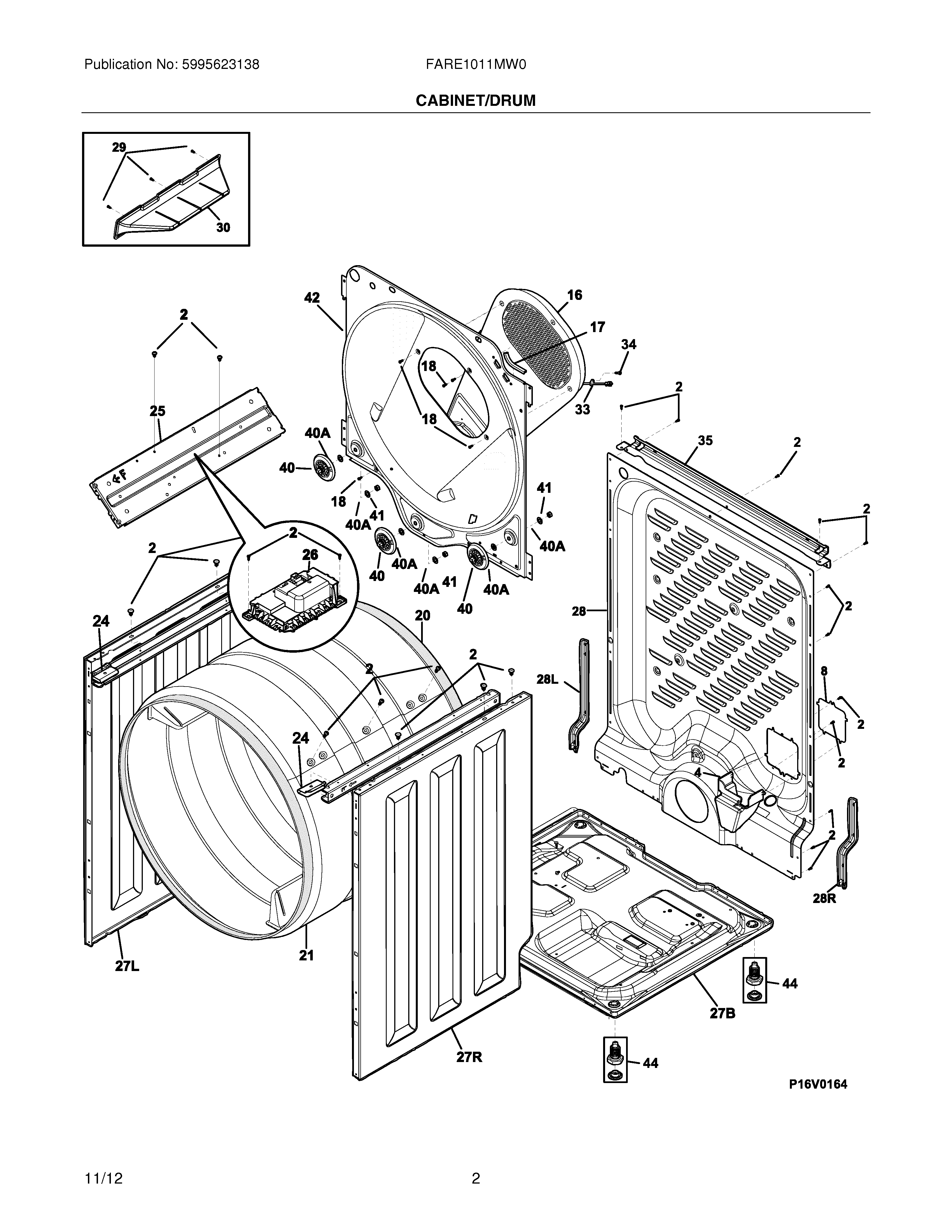

FARE1011MW0 03 – CABINET/DRUM

Products

Position	Product
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	134154100 Frigidaire Screw 10-32 x 0.375 Co
NI	134716200 Frigidaire Retainer
4	WCI 134792200
8	134694400 Frigidaire Cover
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	WCI 134705900
21	WCI 134711900
24	BRACKET, FRONT, TOP SUPP
25	WCI 134912100
26	CONTROL BOARD, PC W/HOUSING
27R	WCI 134690410
27L	WCI 134690310
27B	134690203 Frigidaire Base
27	WCI 137240400
28	PANEL, BACKSHEET, REAR
28R	WCI 137066800
28L	WCI 137029900
29	131205100 Frigidaire Screw
30	VANE, DRUM
33	SAFETY THERMSTAT
34	131243700 Frigidaire Screw
35	BRACKET, REAR, TP, FSD
40	5304523155 Frigidaire Washer Kit
40A	134716700 Frigidaire Washer
41	134716800 Frigidaire Nut
42	WCI 134712816
44	WCI 137029700
