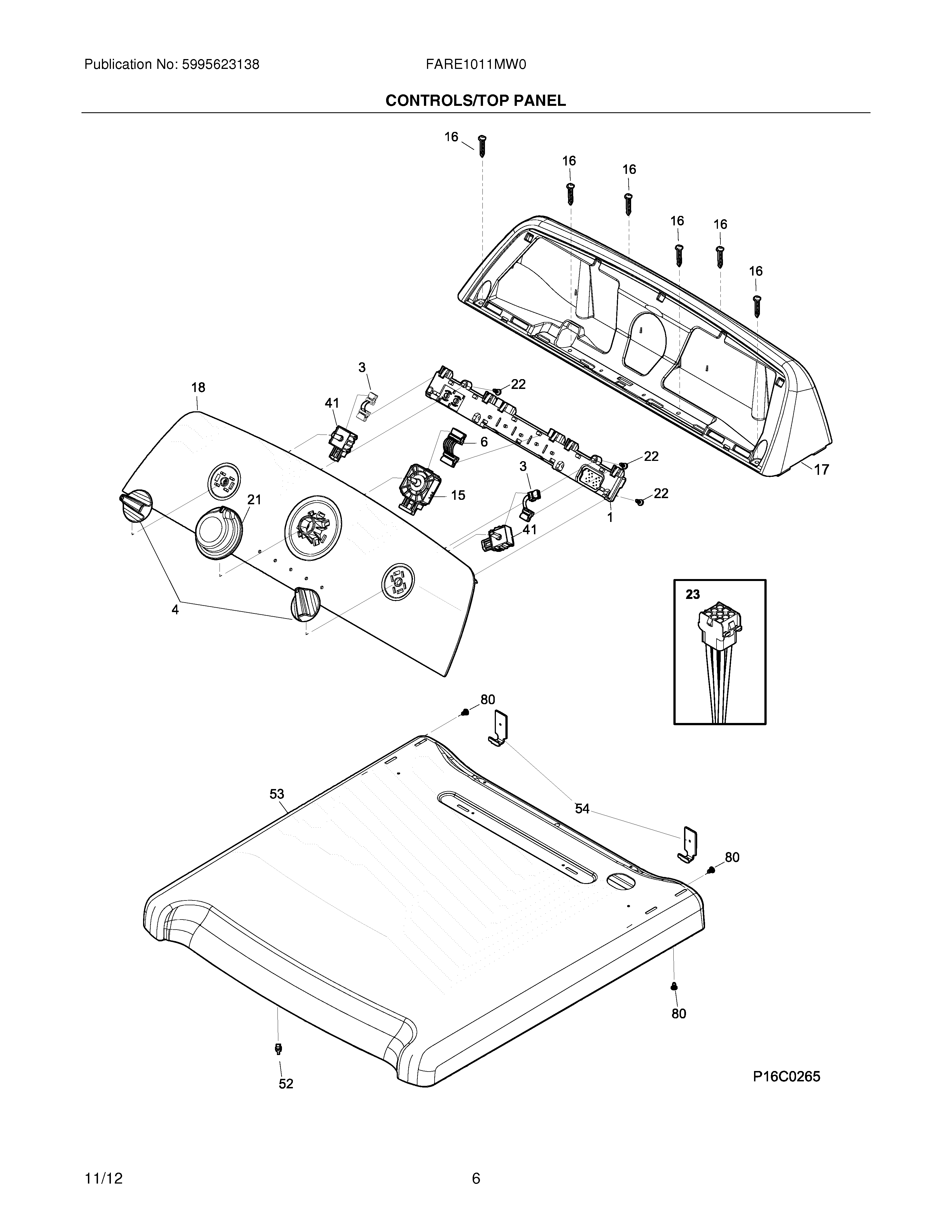

FARE1011MW0 07 – CONTROLS/TOP PANEL

FARE1011MW0 07 – CONTROLS/TOP PANEL

Written by

in

FARE1011MW0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
1CONTROL BOARD, PC W/HOUSING
3137155700 Frigidaire Upper Harness-1
4KNOB, SWITCH
6137348800 Frigidaire Harness Assembly
15SWITCH, PTS CYCLE, 8 POSITION
16131302800 Frigidaire Drum Vane Screw
17CONSOLE, SHELL J, WHITE
18PANEL, DEC CONTROL
21KNOB, CYCLE SELECTOR
22SCREW (2)
23WCI 137419000
41137261000 Frigidaire Switch
52137362600 Frigidaire Pin
53PANEL, TOP PANEL, WHITE
54BRACKET, HINGE, REAR
80131168200 Frigidaire Dryer Screw
