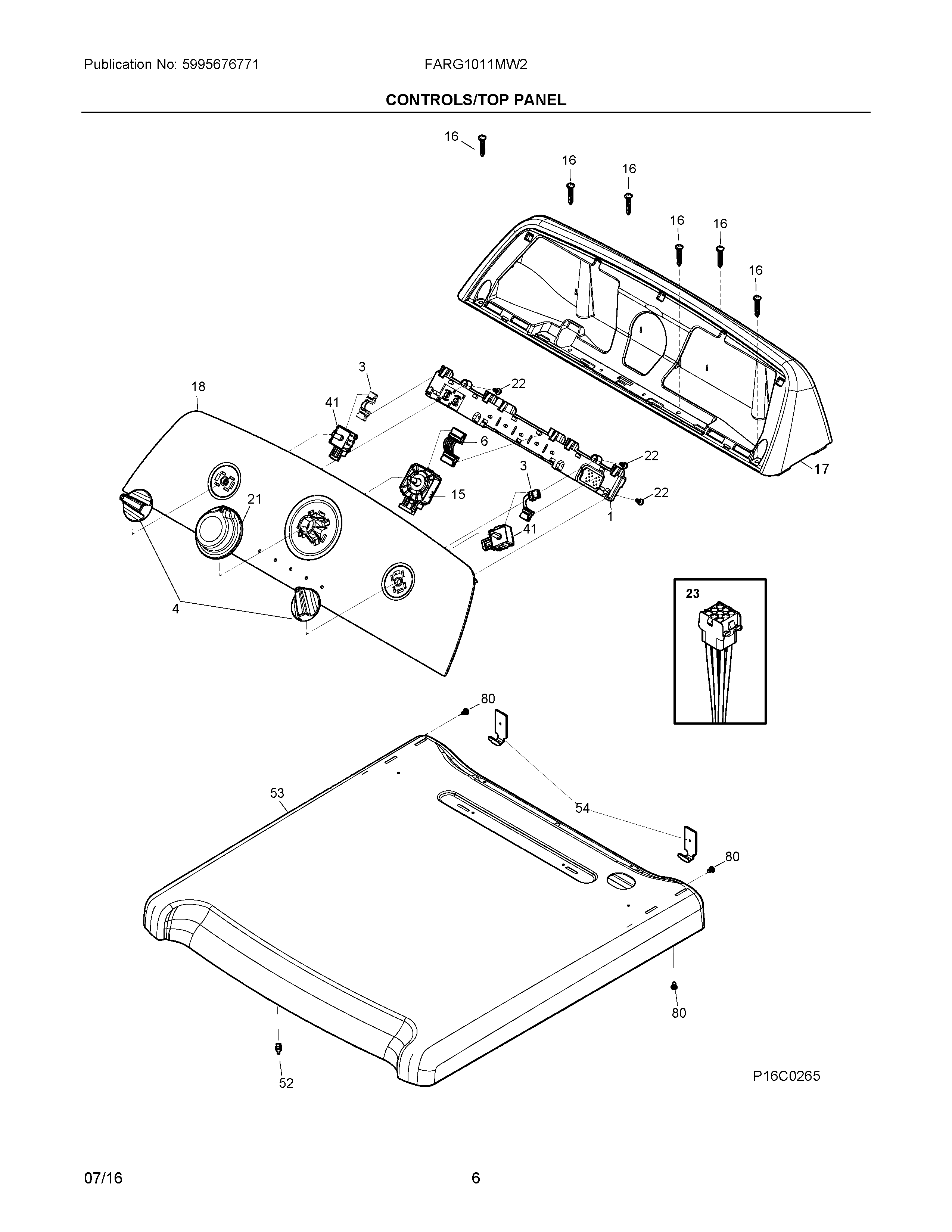

FARG1011MW2 04 – CONTROLS/TOP PANEL

Products

PositionProduct
1CONTROL BOARD, PC W/HOUSING
3137155700 Frigidaire Upper Harness-1
4WCI 137053301
6137348800 Frigidaire Harness Assembly
15SWITCH, PTS CYCLE, 8 POSITION
16131302800 Frigidaire Drum Vane Screw
17CONSOLE, SHELL J, WHITE
18PANEL, DEC CONTROL
21WCI 137489601
225304505441 Frigidaire Screw
23WCI 5304506407
41137261000 Frigidaire Switch
52137362600 Frigidaire Pin
53PANEL, TOP PANEL, WHITE
54BRACKET, HINGE, REAR
80131168200 Frigidaire Dryer Screw
