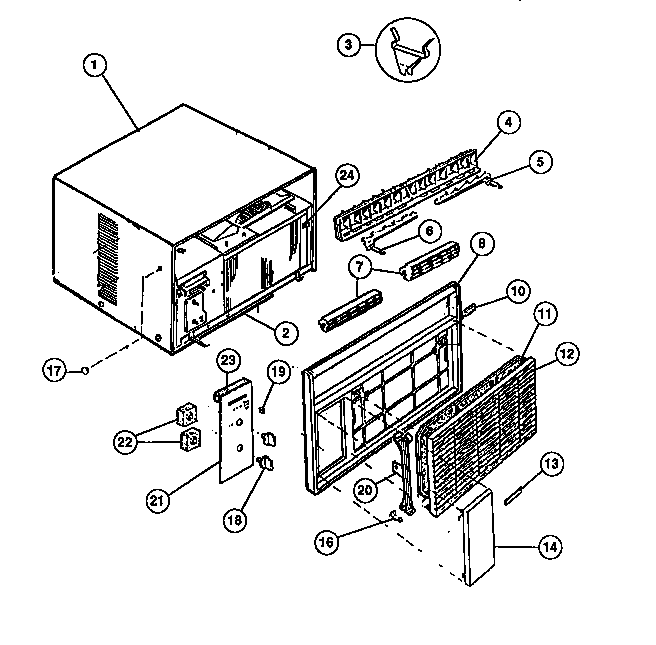

FAS147P1A1 02 – CABINET FRONT & WRAPPER

Products

Position	Product
1	WCI 5303271903
1	SHELL-CABINET
1	WCI 5303210207
2	SEAL-BOTTOM
3	WCI 5303001844
4	WCI 5303002459
5	LINK-VERT LOUVER RH
6	LINK-VERT LOUVER LH
7	FRAME-HORIZ. LOUVER
8	WCI 5308017179
10	SEAL-EVAP OUTLET (NON-ILLUSTRATED)
10	INSERT, MULLION (NI)
11	WCI 5308017190
12	WCI 5303200420
13	PLATE-NAME
14	WCI 5308016196
16	CLIP-FRONT TO BASE
17	PLUG BTN
18	WCI 5308016109
19	WCI 5303002189
20	WCI 5308017138
21	PLATE-DIAL
22	WCI 5303001775
23	WCI 5303001984
24	WCI 5303016223
