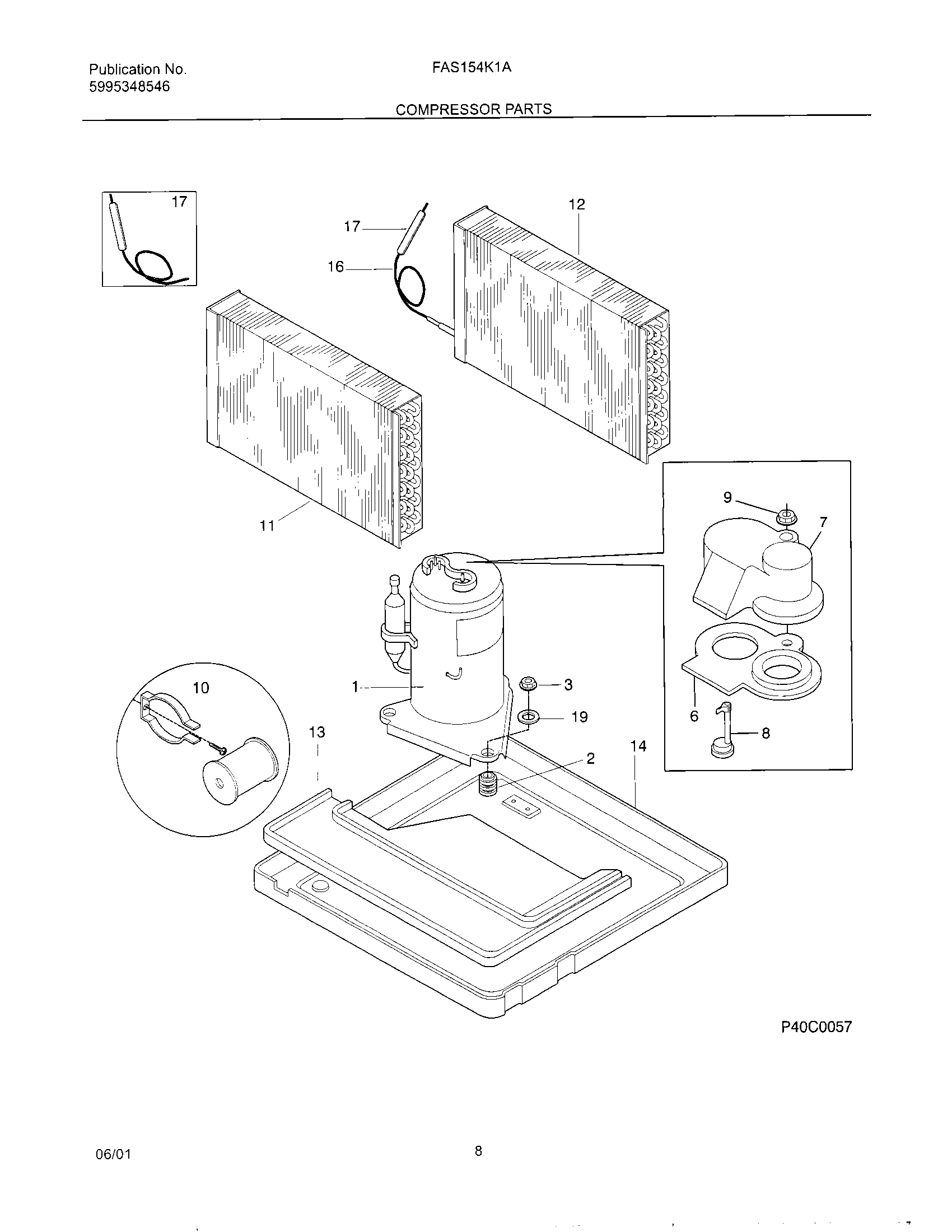

| NI | GASKET-COVER |
| NI | WASHER,COMPRESSOR MTG |
| 1 | COMPRESSOR,W/OVERLOAD |
| 2 | GROMMET,COMPRESSOR MTG ,(3) |
| 3 | NUT,COMPRESSOR MTG ,(3) |
| 7 | WCI 3206230 |
| 8 | OVERLOAD PROTECTOR |
| 9 | WCI 5303211017 |
| 11 | WCI 309634103 |
| 12 | WCI 5303303600 |
| 13 | WCI 309623501 |
| 14 | WCI 309632907 |
| 16 | CAPILLARY TUBE,CUT-TO-SIZE |
| 19 | WCI 309112501 |
