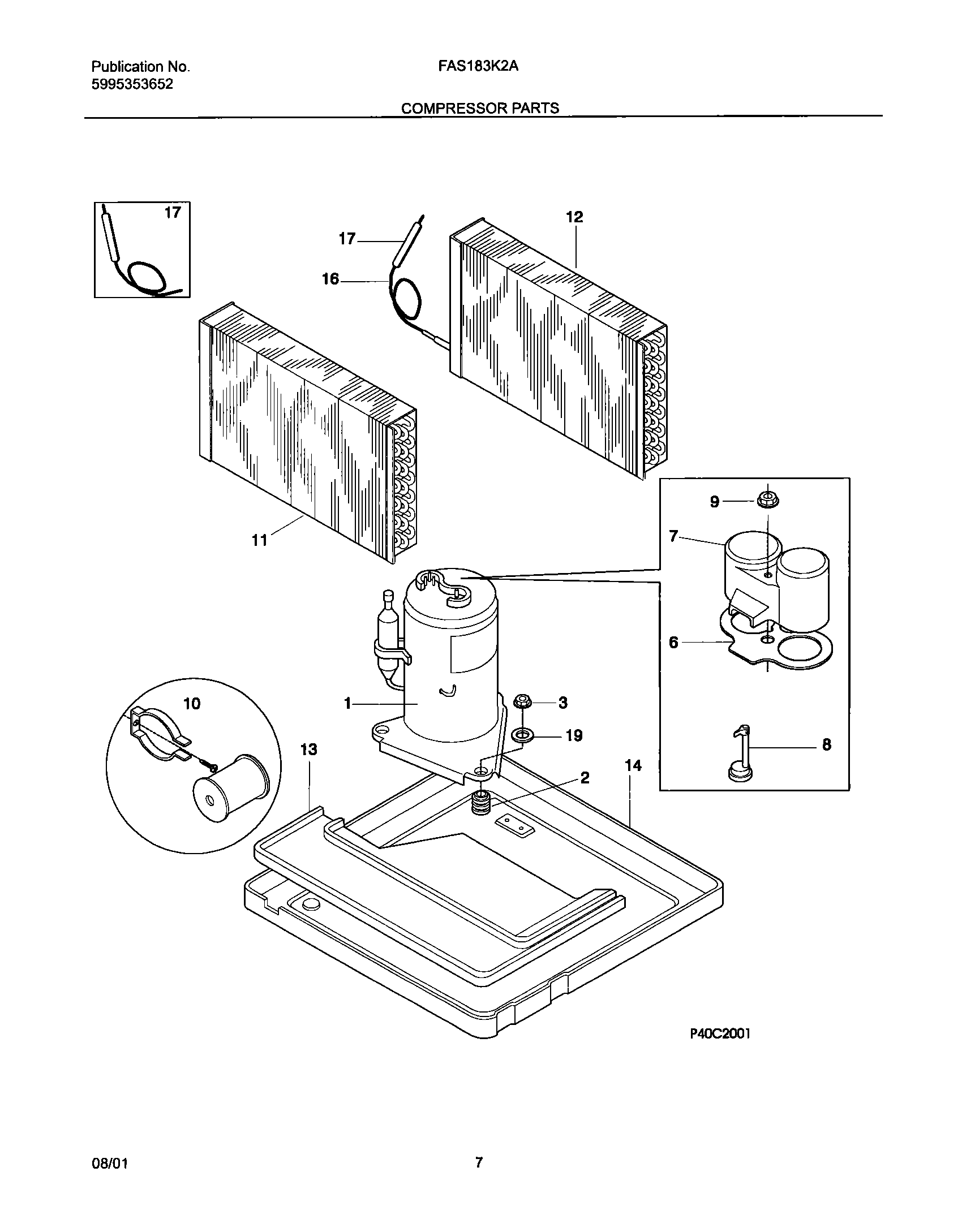

FAS183K2A2 09 – COMPRESSOR PARTS

Written by

Products

Position	Product
NI	WCI 309112501
NI	CLAMP – COVER
1	WCI 5304403268
2	GROMMET – COMPRESSOR, 3
3	NUT,COMPRESSOR MTG ,(3)
6	WCI 5303002068
7	COVER, TERMINAL
11	WCI 309634101
12	WCI 5303306719
13	WCI 309623501
14	WCI 309632906
16	Capillary Tube,45 inch long ,cut to length
19	WASHER,COMPRESSOR MTG
