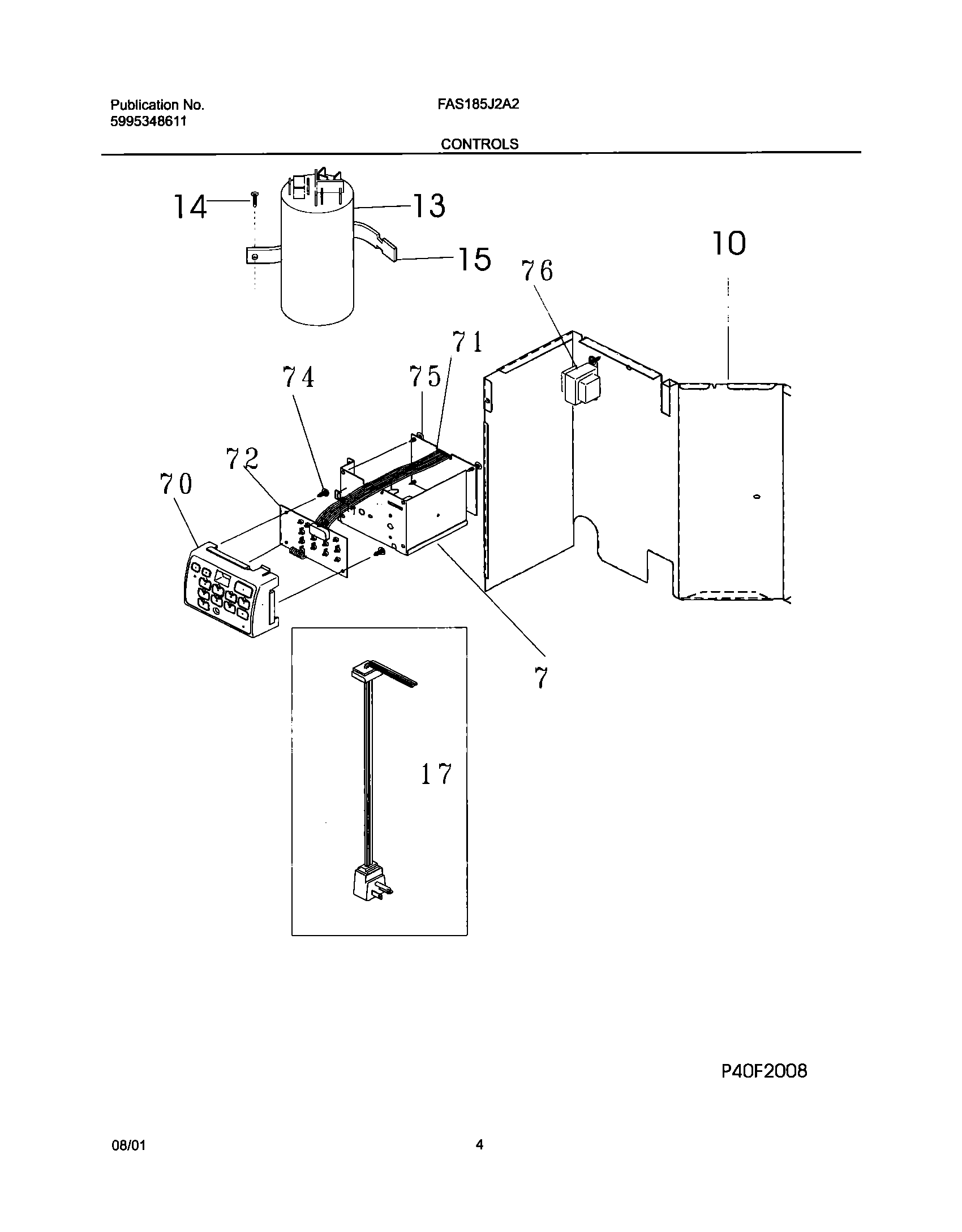

FAS185J2A2 05 – CONTROLS

Products

Position	Product
NI	RIBBON PROTECTOR ELEC CNTRL
NI	WCI 5304414108
7	WCI 309630403
10	WCI 309623601
12	THERMISTOR HOLDER ASSY
13	WCI 5303317228
14	134178901 Frigidaire Screw
15	STRAP – CAPACITOR
16	WIRING HARNESS
17	WCI 309343112
38	SCREW-MOTOR
71	PC Board,power ,w/temp sensor
72	309350403 Frigidaire Air Conditioner Input Board
74	3201861 Frigidaire Screw
75	PC BOARD-SUPPORT HARDWARE
76	Transformer,240/12 Volt
