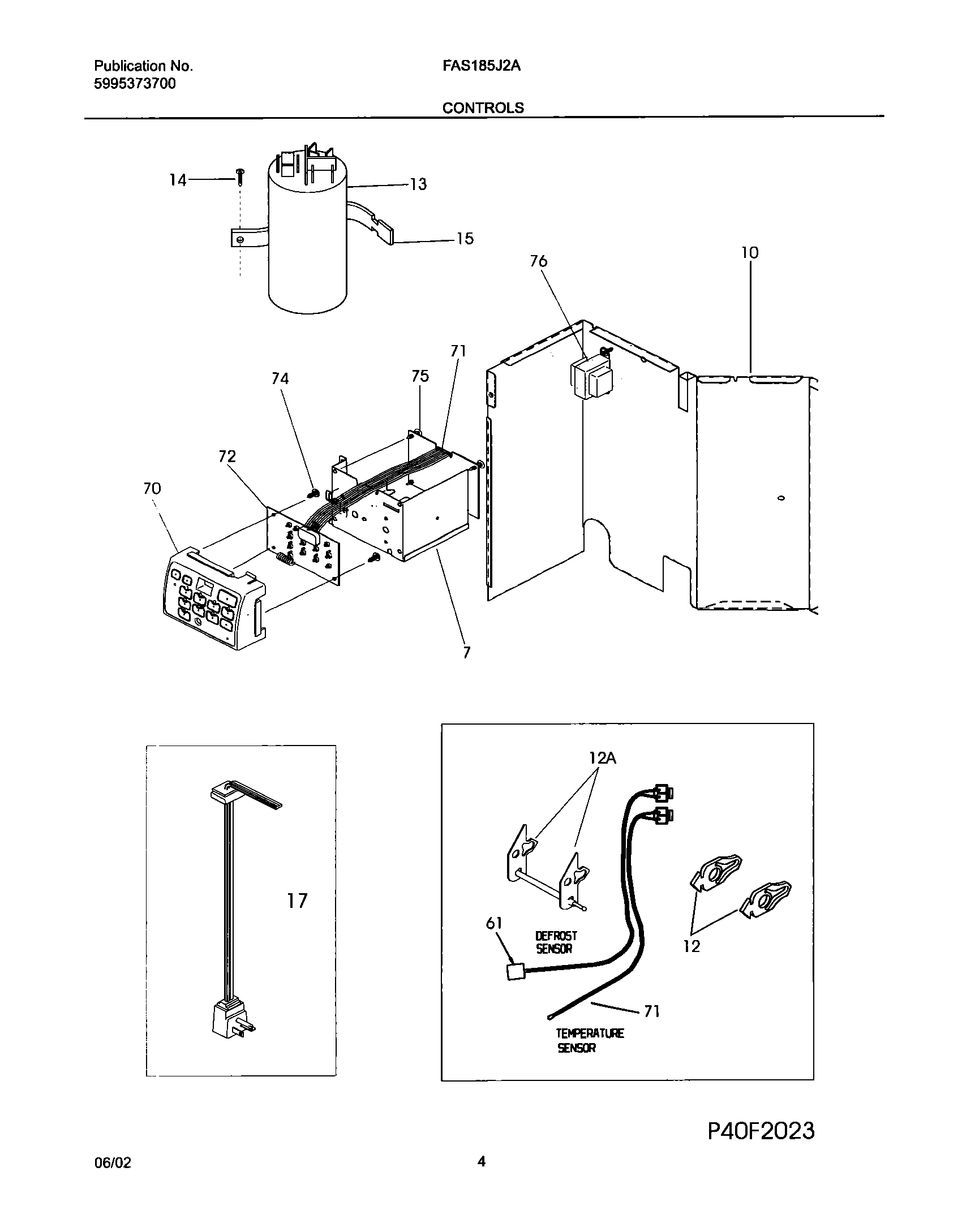

FAS185J2A8 05 – CONTROLS

Products

PositionProduct
NIWCI 309111201
NIRIBBON PROTECTOR ELEC CNTRL
NI134178901 Frigidaire Screw
7WCI 309630403
10WCI 309623602
12THERMISTOR HOLDER ASSY
12AWCI 309331801
13WCI 5304426869
14Screw,Ph truss hd ,8-18 x 0.38 ,ground
15STRAP – CAPACITOR
17WCI 309343112
61WCI 5304414095
70WCI 309342401
71WCI 309340503
72WCI 309340701
743201861 Frigidaire Screw
75PC BOARD-SUPPORT HARDWARE
76Transformer,240/12 Volt
