FAS186L2A1 05 – CONTROLS

FAS186L2A1 05 – CONTROLS

Written by

in

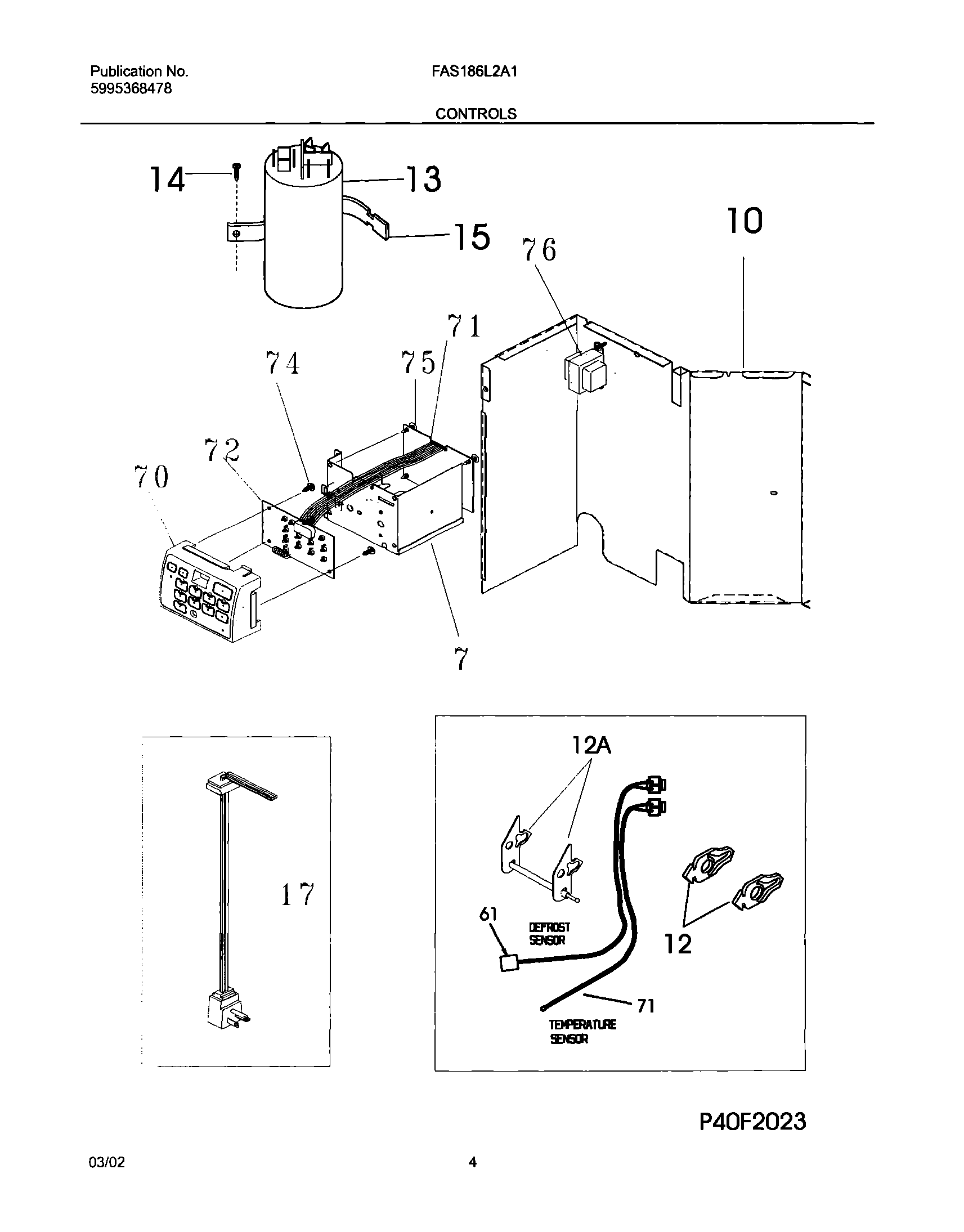

FAS186L2A1 05 – CONTROLS

Products

PositionProduct
NIWCI 309111201
NIRIBBON PROTECTOR ELEC CNTRL
NI134178901 Frigidaire Screw
7WCI 309630403
10WCI 309623602
12AWCI 309331801
12THERMISTOR HOLDER ASSY
13WCI 5303306706
14Screw,Ph truss hd ,8-18 x 0.38 ,ground
15STRAP – CAPACITOR
17WCI 309343112
61WCI 5304414095
70WCI 309342401
71PC Board,power ,w/temp sensor
72309350403 Frigidaire Air Conditioner Input Board
743201861 Frigidaire Screw
75PC BOARD-SUPPORT HARDWARE
76Transformer,240/12 Volt
