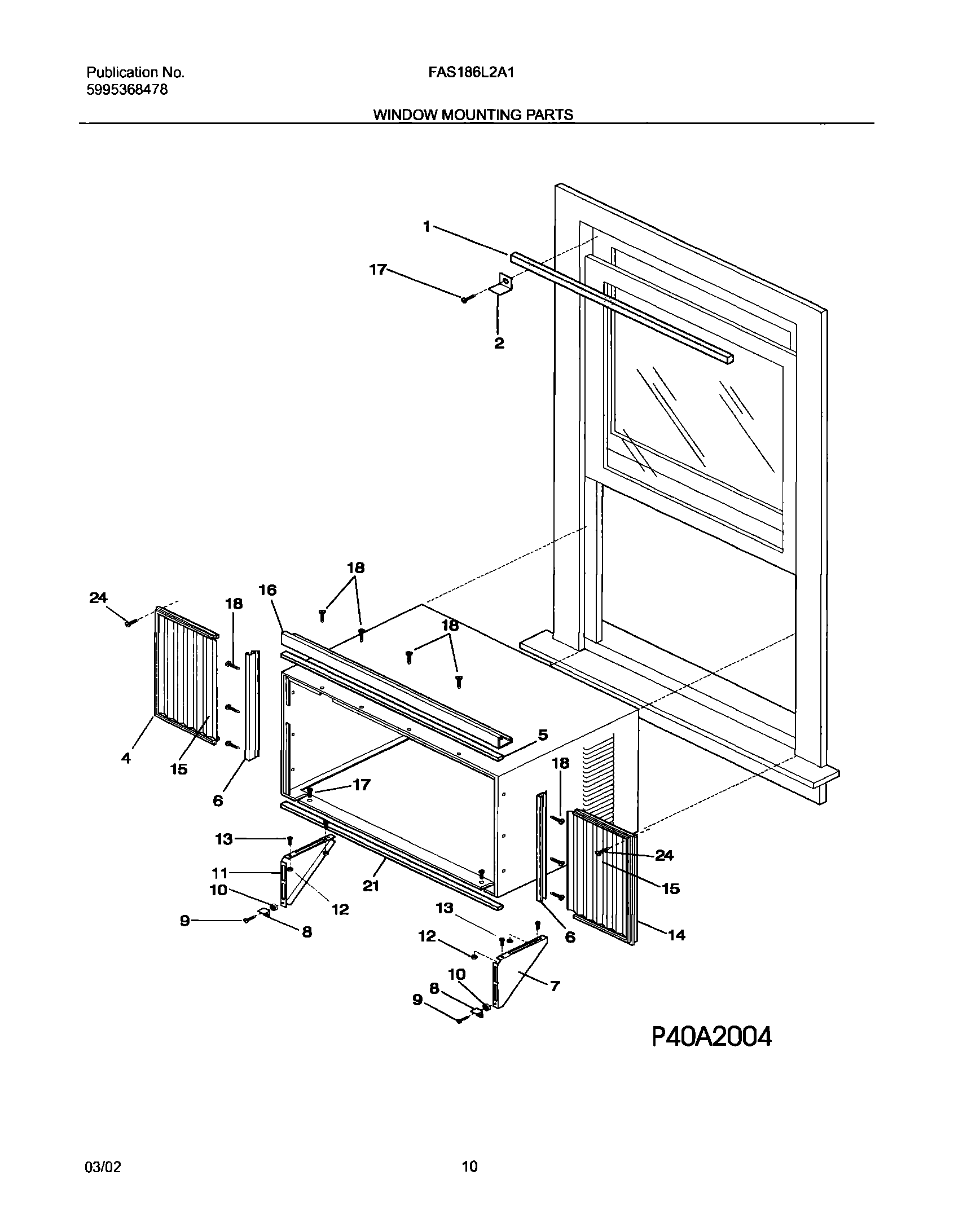

FAS186L2A1 11 – WINDOW MOUNTING PARTS

Products

Position	Product
NI	WCI 309313204
NI	WCI 309313303
NI	WCI 5304409248
NI	WCI 5304409249
1	5304407729 Frigidaire Air Conditioner Seal
2	BRACKET
4	Frame,cab extension ,LH ,sliding
5	WCI 5304409250
6	WCI 5304414933
7	BRACKET-SUPPT-RH (NCS1403)
8	BRACKET - SUPPORT
9	SCREW - SILL SUPT
10	NUT - BRACKET
11	BRACKET-SUPPT-LH (NCS1403)
12	316205500 Frigidaire Oven Nut
13	SCREW - SUPPORT, 4
14	Frame,cab extension ,RH ,sliding
15	WCI 5304414930
16	WCI 5304414116
17	SCREW-WOOD
18	WCI 5308012680
21	SEAL-BOTTOM
24	WCI 3002801
