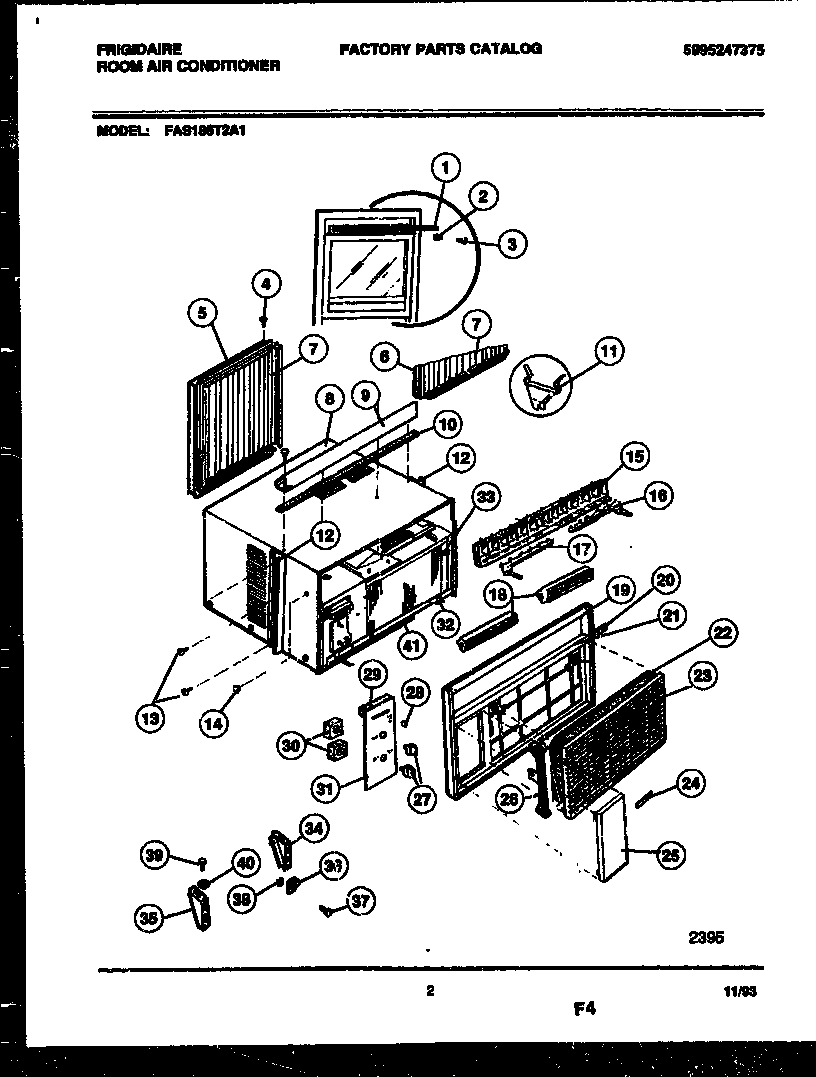

FAS186T2A1 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303002608
2	BRACKET
3	SCREW-WOOD
4	WCI 3002801
5	WCI 5303302304
6	WCI 5303302305
7	WCI 5303302306
8A	GRILLE-REAR
8	WCI 5303301790
8B	WCI 5303300131
9	WCI 530301777
10	WCI 3001980
11	WCI 5303001844
12	WCI 3202498
13	WCI 08012680
14	PLUG BTN
15	WCI 5303002459
16	LINK-VERT LOUVER RH
17	LINK-VERT LOUVER LH
18	FRAME-HORIZ. LOUVER
19	WCI 3205525
20A	SEAL-EVAP OUTLET (NON-ILLUSTRATED)
20	WCI 08017353
21	SCREW-FRONT
22	WCI 5308017190
23	WCI 5303200420
24	WCI 309100901
25	WCI 5308016196
26	WCI 5308017138
27	WCI 5308016109
28	WCI 5303002189
29	WCI 5303001984
30	WCI 5303001775
31	PLATE-DIAL
32	CLIP-FRONT TO BASE
33	WCI 5303016223
34	WCI 5303301254
35	WCI 5303301255
36	BRACKET – SUPPORT
37	SCREW – SILL SUPT
38	NUT – BRACKET
39	SCREW – SUPPORT, 4
40	316205500 Frigidaire Oven Nut
41	SEAL-BOTTOM
