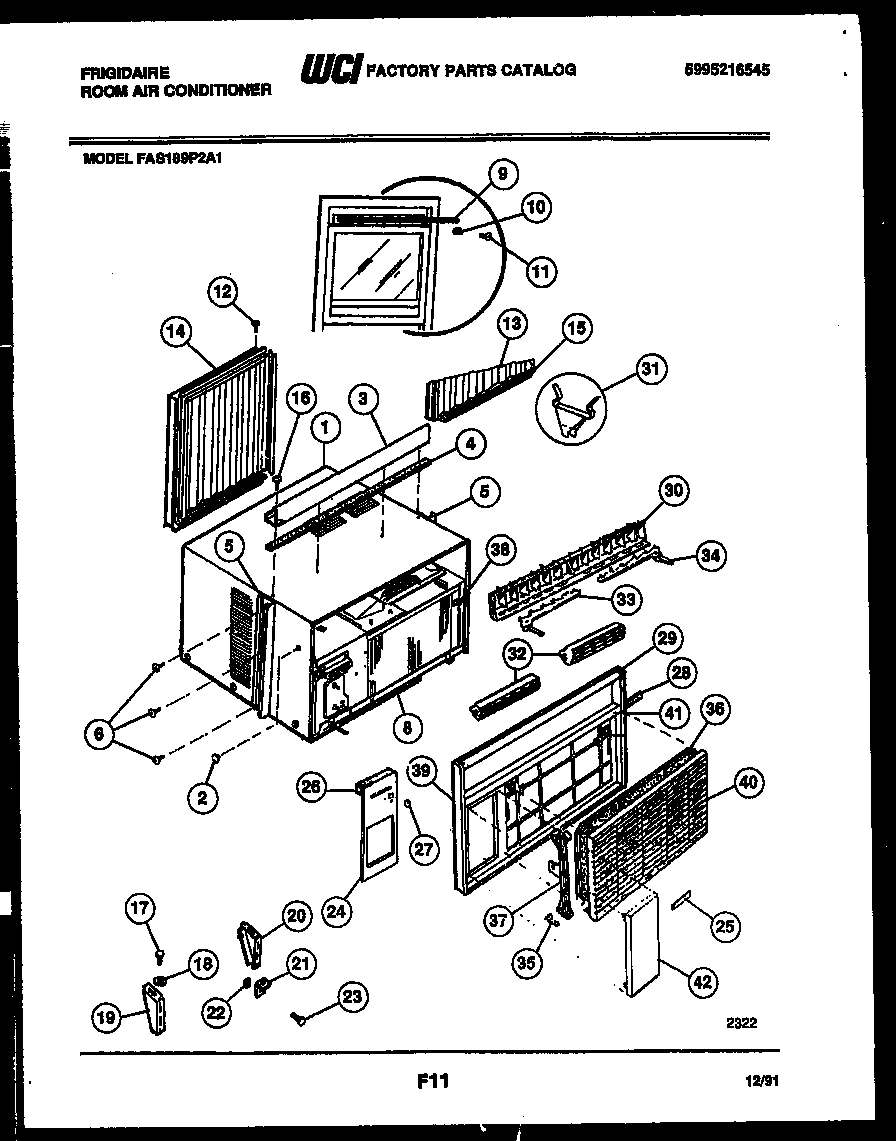

FAS189P2A1 02 – CABINET PARTS

Products

Position	Product
*56596	WCI 5308017325
1	SHELL-CABINET
2	PLUG BTN
2B	WCI 5303271903
2A	WCI 5303210207
3	ANGLE – TOP WINDOW
4	WCI 3001980
5	WCI 3202498
8	SEAL-BOTTOM
9	WCI 5303002608
10	BRACKET
12	WCI 3002801
13	ACCORDIAN (2)
14	WCI 3202495
15	WCI 3202497
16	WCI 08012680
17	SCREW – SILL SUPT
18	316205500 Frigidaire Oven Nut
19	WCI 3016225
20	WCI 3016624
21	BRACKET – SUPPORT
22	NUT – BRACKET
23	SCREW-WOOD
24	WCI 5303281825
25	PLATE-NAME
26	SEAL
27	WCI 5303271479
28	WCI 08017353
29	WCI 5303281922
30	WCI 5303002459
31	WCI 5303001844
32	FRAME-HORIZ. LOUVER
33	LINK-VERT LOUVER LH
34	LINK-VERT LOUVER RH
35	CLIP-FRONT TO BASE
36	WCI 5308017190
37	WCI 5308017138
38	WCI 5303016223
39	SEAL-EVAP OUTLET (NON-ILLUSTRATED)
40	WCI 5303200420
41	WCI 5303281824
42	WCI 5308016197
