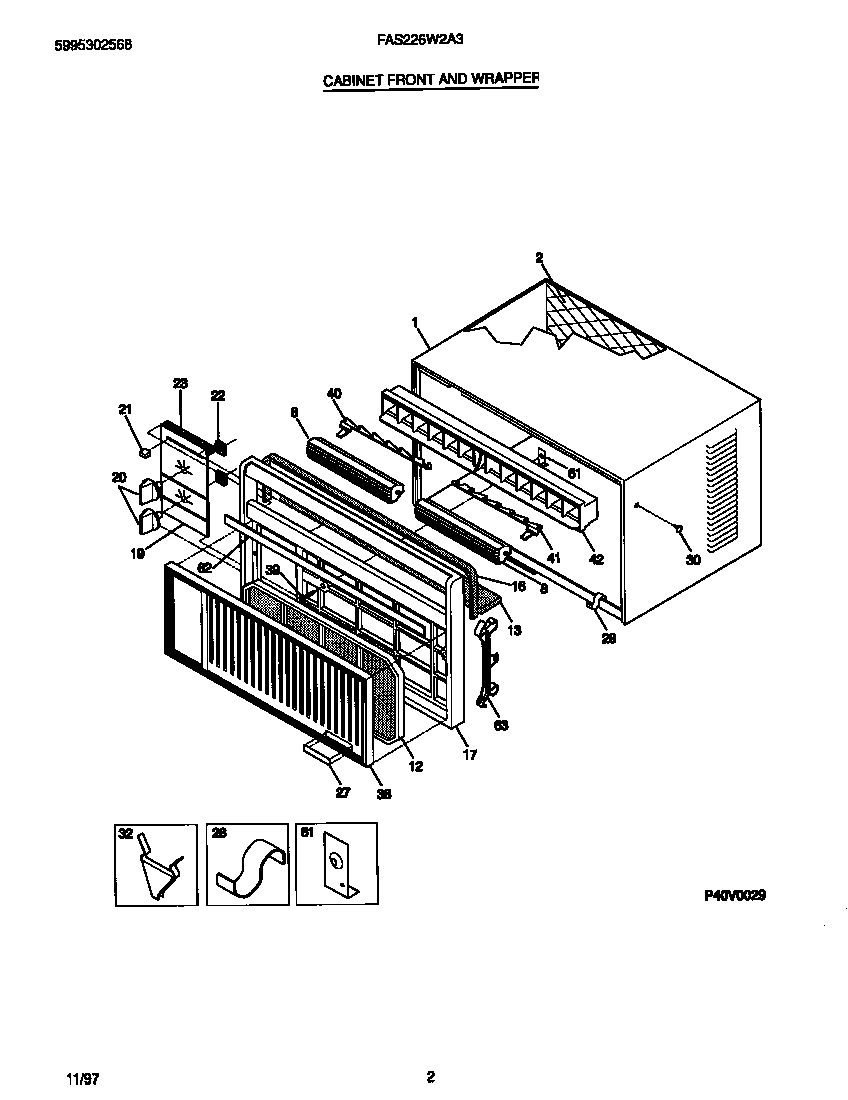

FAS226W2A3 02 – CABINET FRONT AND WRAPPER

FAS226W2A3 02 – CABINET FRONT AND WRAPPER

Written by

in

FAS226W2A3 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
*04000SEAL-BOTTOM
1WCI 5303303545
2WCI 5303210207
8LOUVER
12WCI 5308017190
13WCI 08017353
16SEAL-EVAP OUTLET (NON-ILLUSTRATED)
17WCI 309611006
18WCI 5308016197
19WCI 309624402
20WCI 5304402843
21WCI 5304402841
22WCI 5303001775
23WCI 5303001984
27WCI 309100902
28CLIP-FRONT TO BASE
30WCI 08016091
32WCI 5303001844
38WCI 5304402844
39134178901 Frigidaire Screw
40WCI 309321803
41WCI 309321804
42WCI 5303002459
61WCI 5303016223
62WCI 5304402847
63WCI 5308017138
