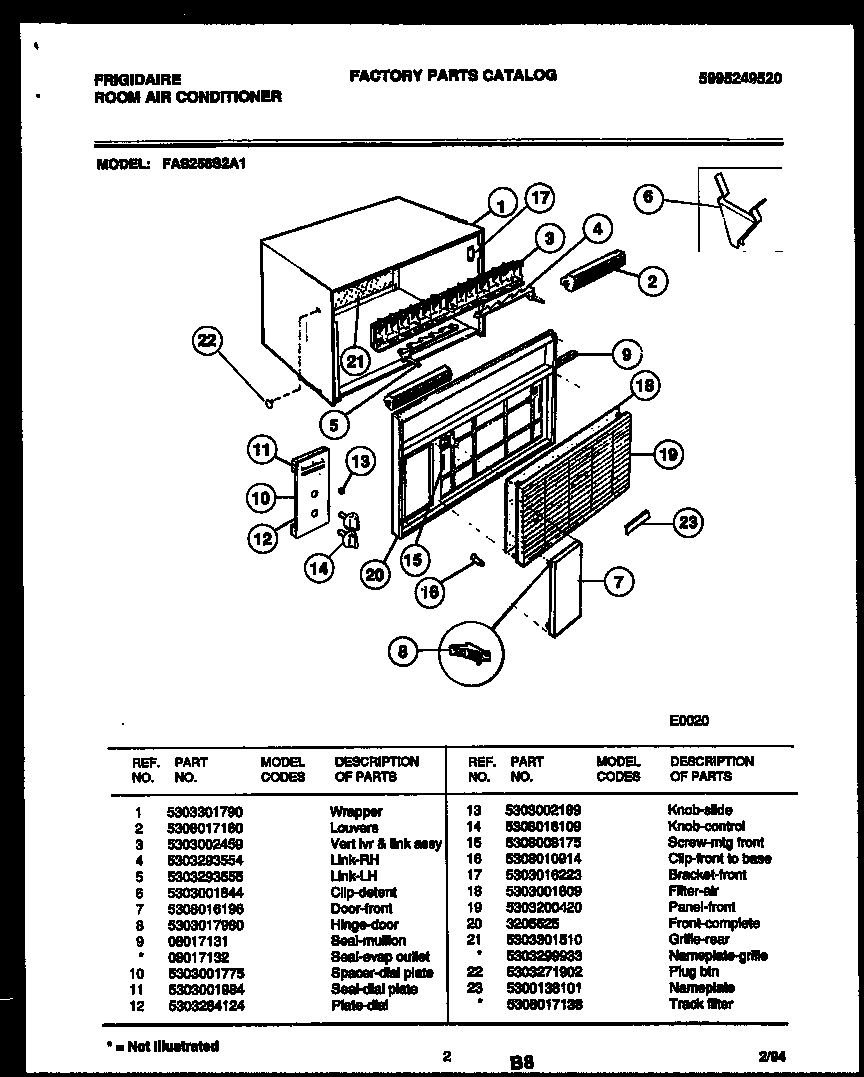

FAS256S2A1 02 – CABINET PARTS

Products

Position	Product
*92633	WCI 5308017138
1	WCI 5303301790
2	FRAME-HORIZ. LOUVER
3	WCI 5303002459
4	WCI 5303293554
5	WCI 5303293555
6	WCI 5303001844
7	WCI 5308016196
8	HINGE - DOOR
9	WCI 08017131
9A	SEAL-EVAP OUTLET (NON-ILLUSTRATED)
10	WCI 5303001775
11	WCI 5303001984
12	PLATE-DIAL
13	WCI 5303002189
14	WCI 5308016109
15	SCREW-FRONT
16	CLIP-FRONT TO BASE
17	WCI 5303016223
18	FILTER-AIR
19	WCI 5303200420
20	WCI 3205525
21	GRILLE-REAR
21A	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
22	PLUG BTN
23	WCI 5300138101
