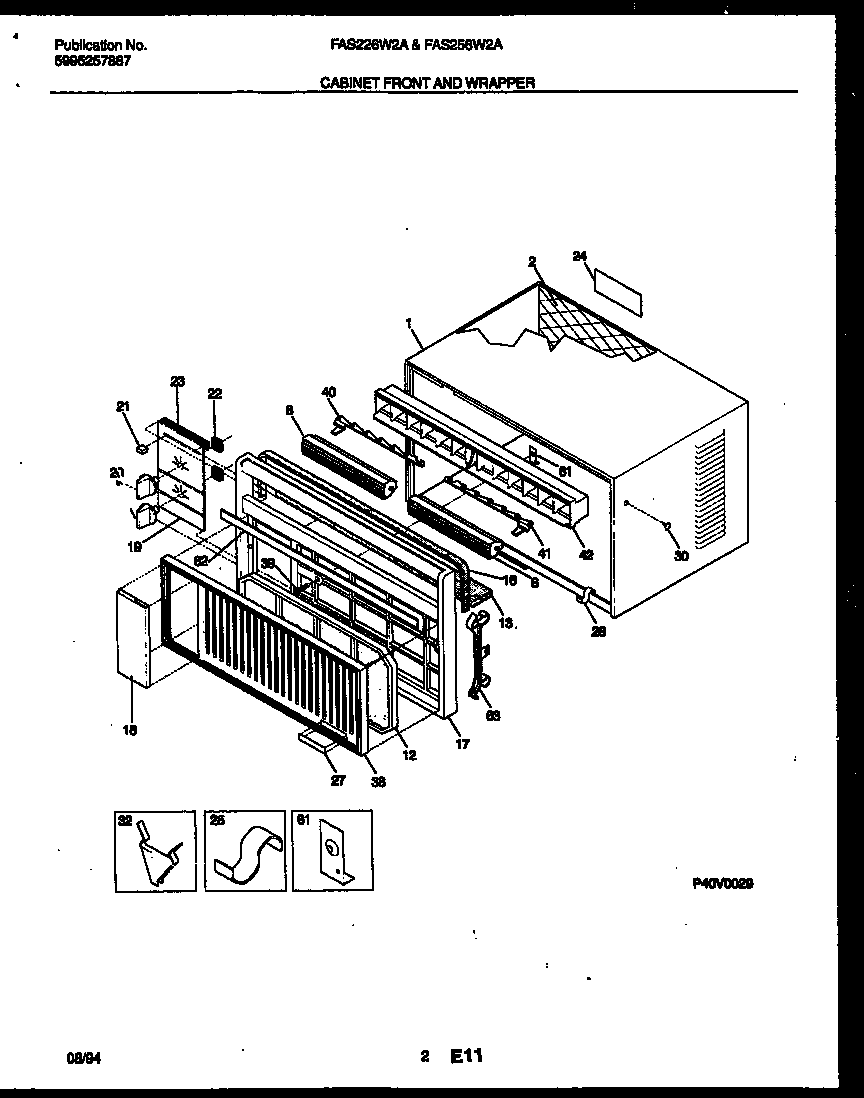

FAS256W2A1 02 – CABINET FRONT AND WRAPPER

FAS256W2A1 02 – CABINET FRONT AND WRAPPER

Written by

in

FAS256W2A1 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
*10784SEAL-BOTTOM
1WCI 5303303545
2WCI 5303210207
8WCI 5303306264
12WCI 5308017190
13WCI 08017353
16SEAL-EVAP OUTLET (NON-ILLUSTRATED)
17WCI 309611001
18WCI 5308016197
19WCI 5303306268
20WCI 5303306263
21WCI 5303306262
22WCI 5303001775
23WCI 5303001984
27WCI 309100901
28CLIP-FRONT TO BASE
30WCI 08016091
32WCI 5303001844
38WCI 5303306266
39134178901 Frigidaire Screw
40WCI 5303293555
41WCI 5303293554
42WCI 5303002459
61WCI 5303016223
62WCI 5303306269
63WCI 5308017138
