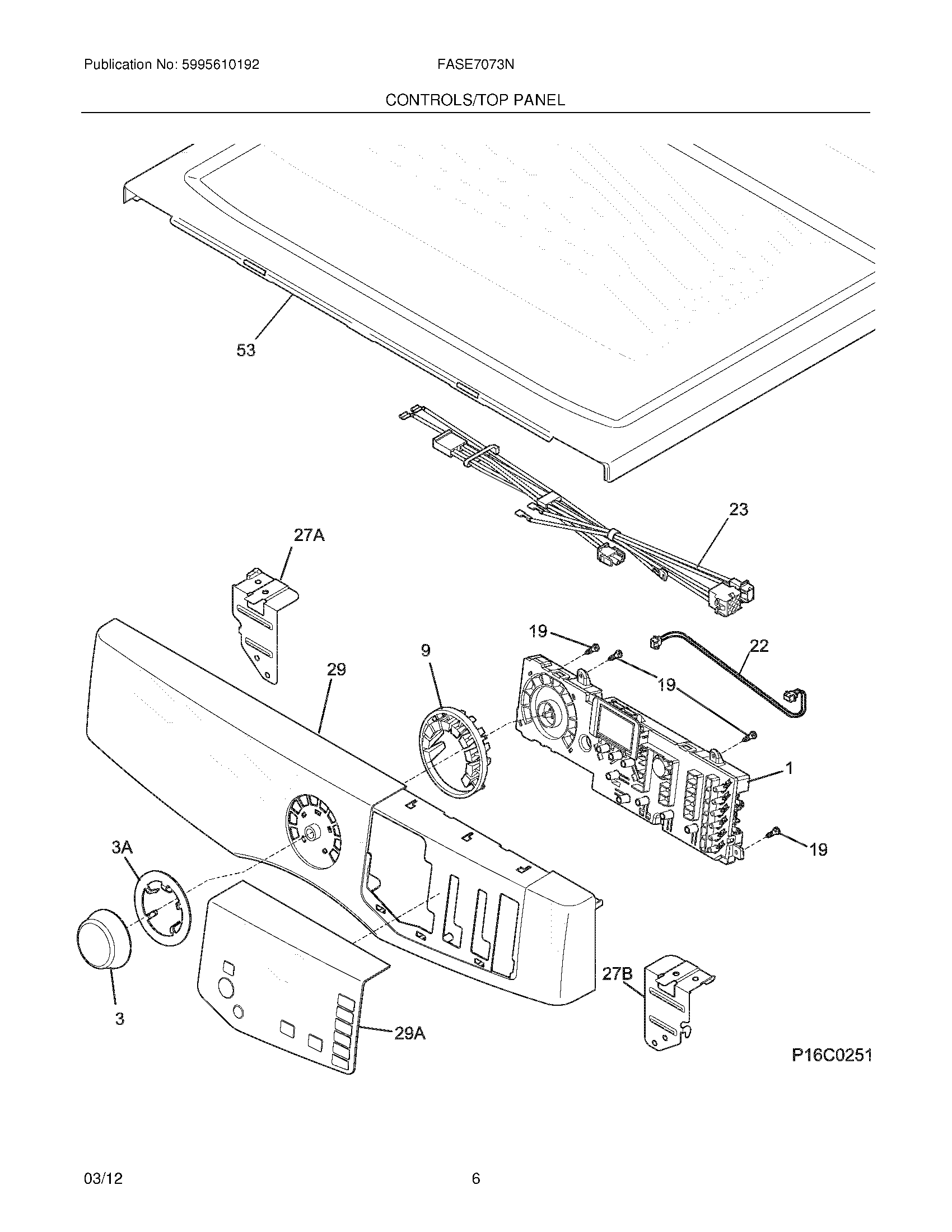

FASE7073NW0 07 – CONTROLS/TOP PANEL

FASE7073NW0 07 – CONTROLS/TOP PANEL

Written by

in

FASE7073NW0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NI137150200 Frigidaire Terminal
NI134926600 Frigidaire Damper
1809160902 Frigidaire Control Board
3WCI 137286500
3AWCI 137296900
9WCI 137286600
19134402900 Frigidaire Screw
22134790700 Frigidaire Harness
23WCI 137476500
27A134710900 Frigidaire Bracket Assembly
27B134711000 Frigidaire Bracket
29Panel, Control,console ,white
29APanel, Display,decorated
53134638510 Frigidaire Washer Dryer Top Panel
