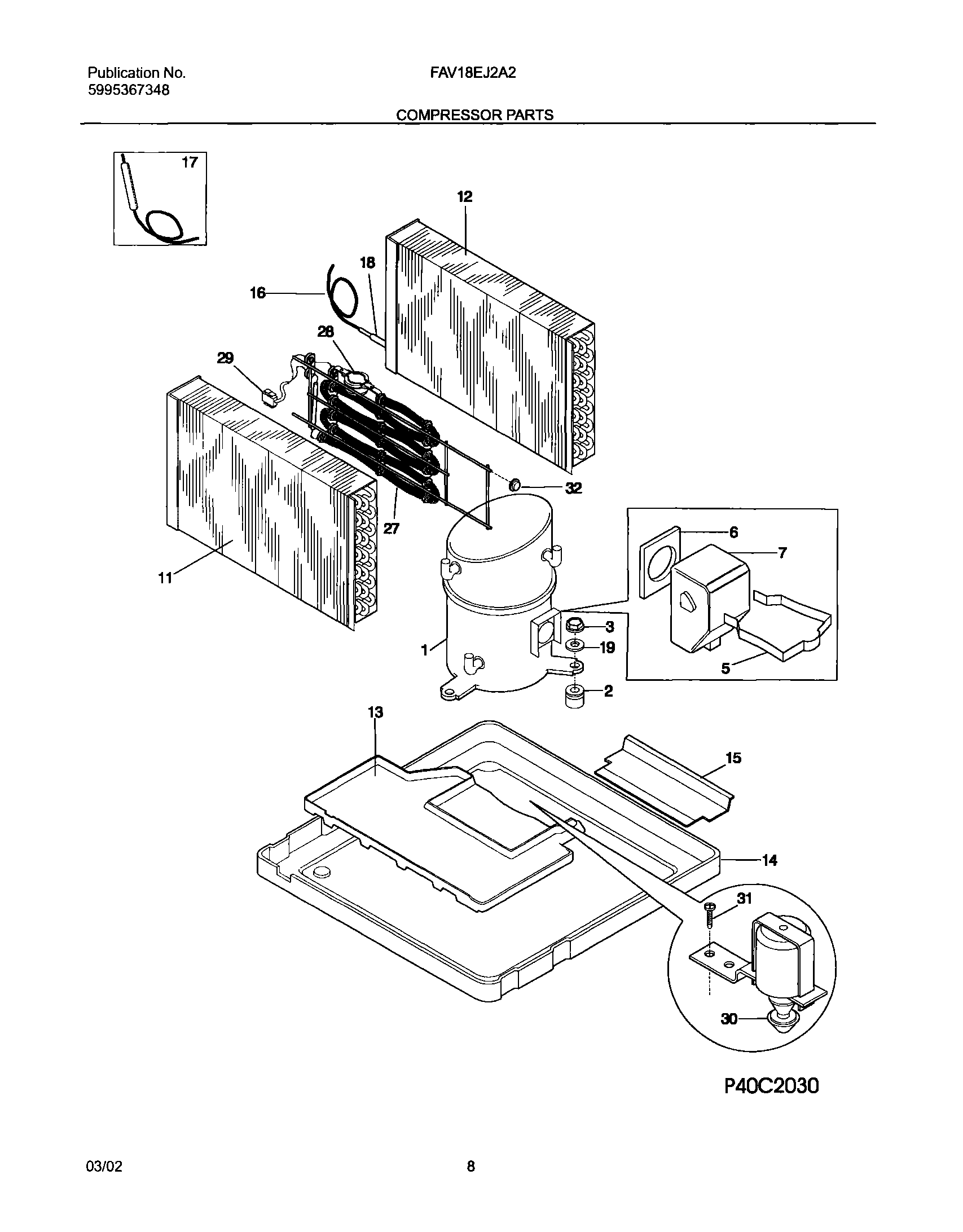

FAV18EJ2A2 09 – COMPRESSOR PARTS

Products

Position	Product
NI	WCI 309112501
1	WCI 5304426563
2	GROMMET - COMPRESSOR, 3
3	NUT,COMPRESSOR MTG ,(3)
5	CLAMP - COVER
6	WCI 5303002068
7	COVER, TERMINAL
11	WCI 5303317606
12	WCI 5303306719
13	WCI 5303208221
14	WCI 309632908
15	Shield,heater baffle
16	WCI 5304409399
17	5300265301 Frigidaire Air Conditioner P1 Filter Drier
18	WCI 5303290357
19	WASHER,COMPRESSOR MTG
27	Heater Assy,with thermostat
28	THERMOSTAT-HEATER
29	WCI 3201968
30	WCI 309363601
31	SCREW-DRAIN (2)
32	NUT-HEATER
