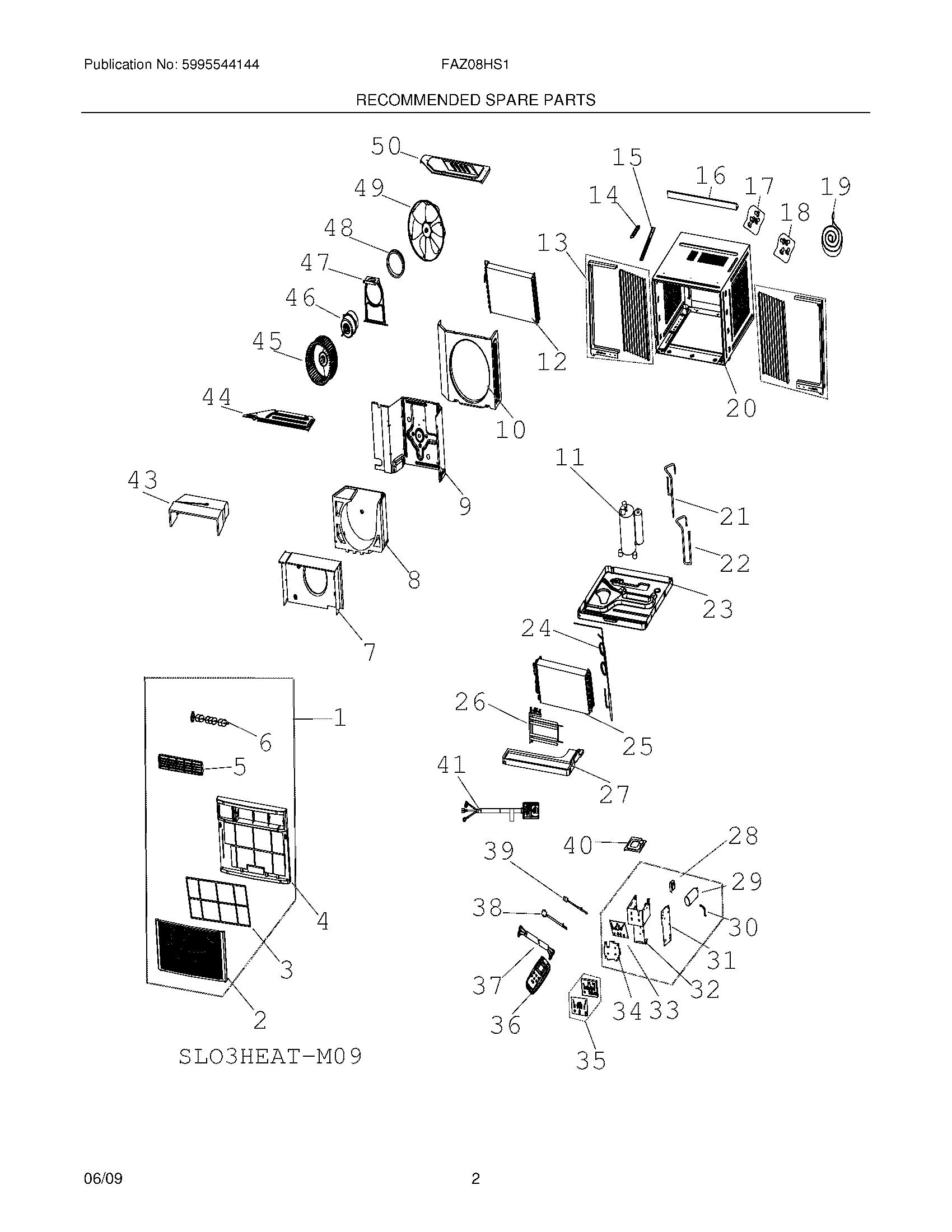

FAZ08HS1AB 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304471240
2	WCI 5304471241
3	WCI 5304471242
4	WCI 5304471243
5	WCI 5304471244
6	WCI 5304471245
7	WCI 5304471246
8	WCI 5304471301
9	WCI 5304471248
10	WCI 5304471249
11	WCI 5304470984
12	WCI 5304471302
13	WCI 5304471252
14	WCI 5304471253
15	WCI 5304471254
16	WCI 5304471255
17	Screw Kit,top rail mount
18	WCI 5304471257
19	Seal kit,window ,foam strips
20	WCI 5304471259
21	WCI 5304471303
22	WCI 5304471304
23	WCI 5304471305
24	WCI 5304471263
25	WCI 5304471264
26	WCI 5304470955
27	WCI 5304471265
28	5304470989 Frigidaire Air Conditioner Transformer
29	WCI 5304471306
30	WCI 5304471267
31	WCI 5304471307
32	WCI 5304471269
33	5304471308 Frigidaire Air Conditioner PC Board
34	WCI 5304471271
35	WCI 5304471309
36	WCI 5304471310
37	WCI 5304471274
38	5304471275 Frigidaire Air Conditioner Sensor
39	Sensor,temperature ,ambient
40	WCI 5304471277
41	WCI 5304471278
43	WCI 5304471311
44	WCI 5304471282
45	5304471312 Frigidaire Air Conditioner Blower Wheel
46	WCI 5304471284
47	WCI 5304471285
48	WCI 5304471286
49	5304471287 Frigidaire Air Conditioner Fan Blade
50	WCI 5304471288
