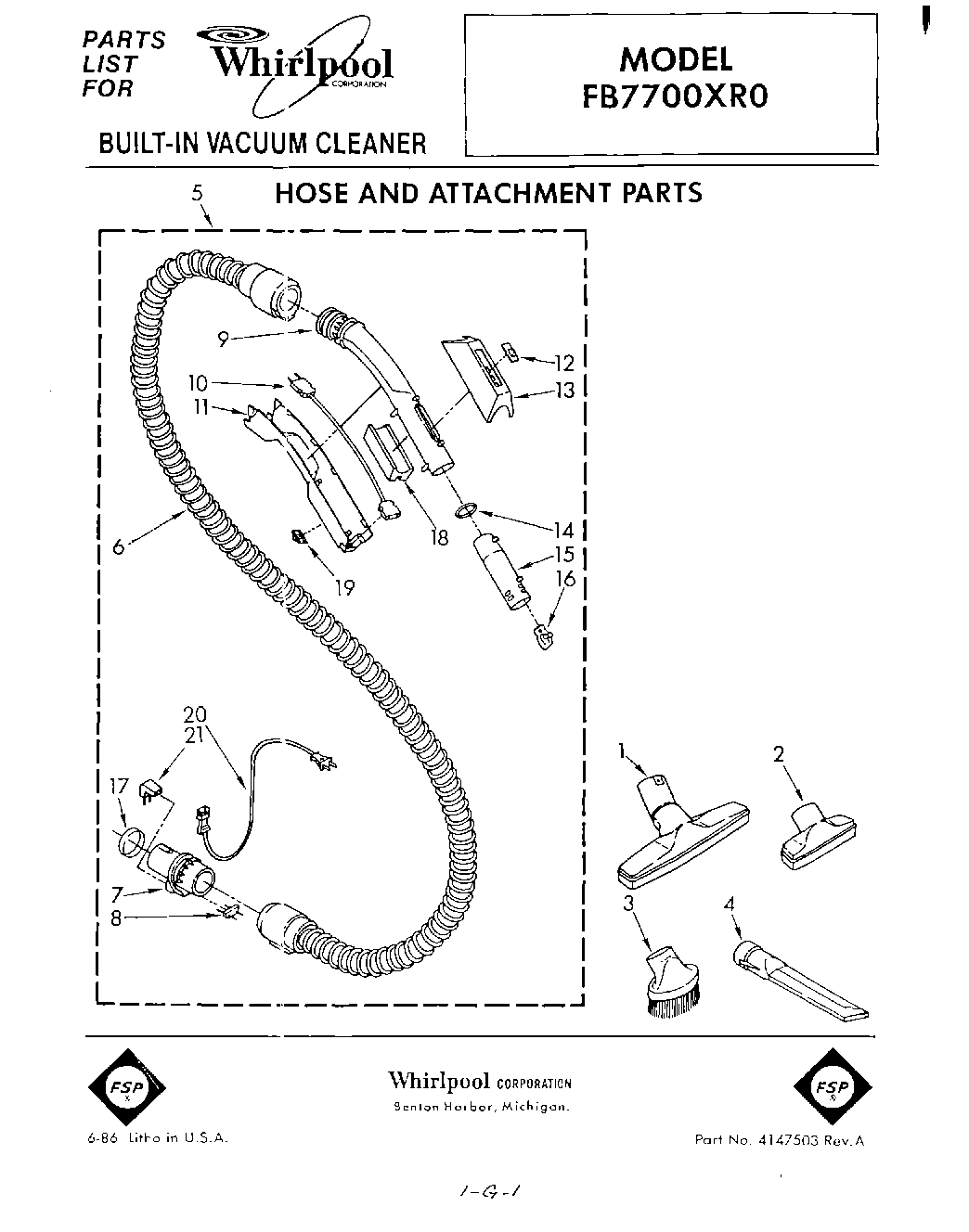

FB7700XR0 01 – SECTION – Aparts

FB7700XR0 01 – SECTION

Products

Position	Product
1	Brush, Floor
2	Nozzle, Upholstery
3	Brush, Dusting
4	Tool, Crevice
5	Hose Assembly
6	Hose
7	Terminal
8	Plug, Male
9	Housing, Center Tube
10	Cord & Plug Assembly
11	Switch & Lower Housing
12	Control, Suction
13	Housing, Upper
14	``O`` Ring
15	Tube (Includes Illus. 16)
16	Spring, Wandlock
17	Ring, Contact
18	Filler, Foam
19	Topper, Switch
20	Cord, Power
21	Plug, Double Fused
