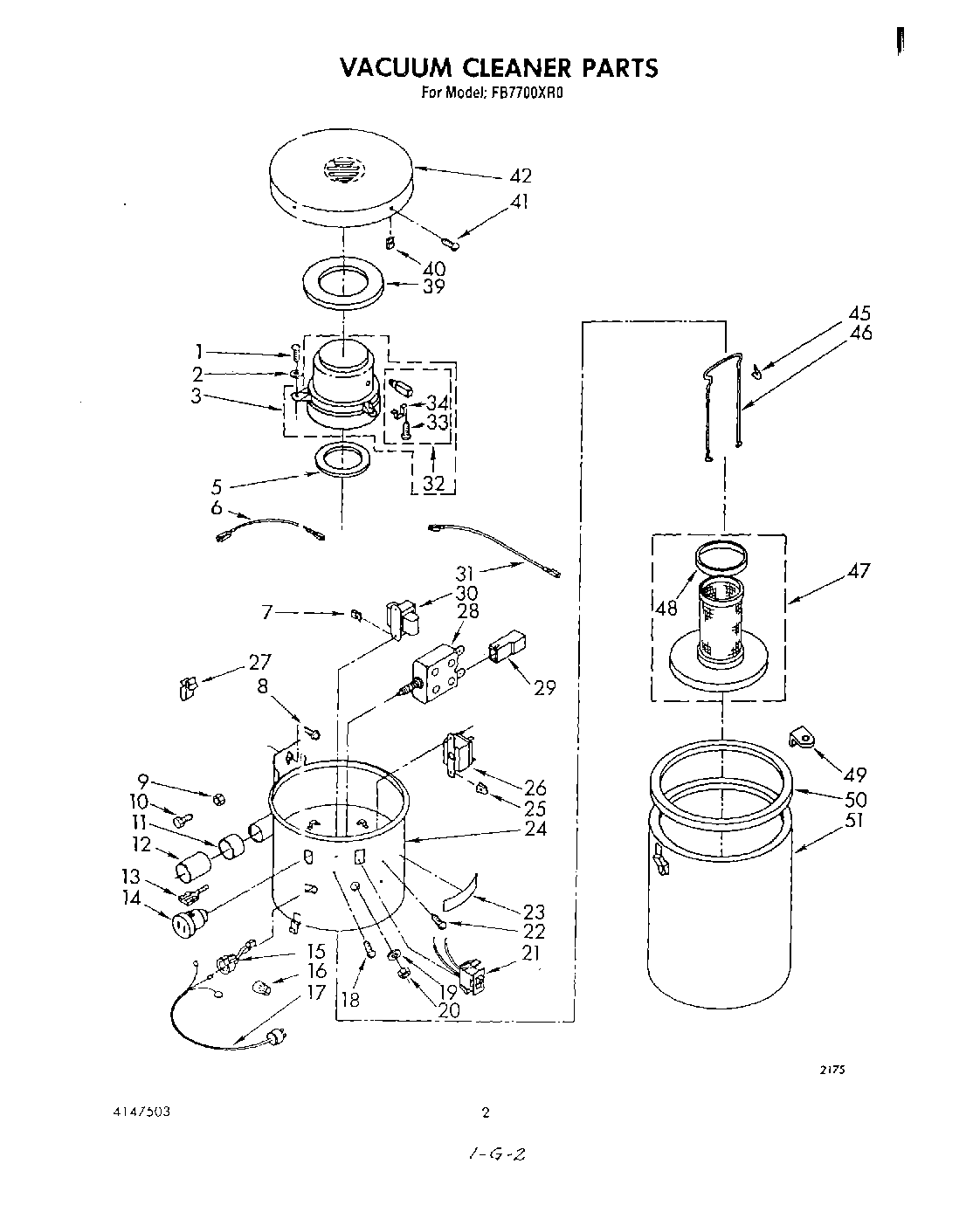

FB7700XR0 02 – SECTION

Products

Position	Product
	Instructions, Installation
	Repair Parts LIst
	Owner`s Manual
1	Screw, 10-12 x 3/4 (3)
2	Washer
3	Motor
5	Seal, Motor (Bottom)
6	Lead, Wire (4)
7	Nut, Speed (2)
8	Screw, Lag 1/4 x 1-3/4 (2)
9	WP486255 Whirlpool Air Conditioner Nut
10	Screw, 8-32 x 3/8 (2)
11	Bushing
12	Coupling, 2“
13	WP285432 Whirlpool Terminal
14	Terminal
15	Strain Relief
16	Connector, Closed End
17	Cord, Power
19	Washer 7/16
20	Nut, Switch (2)
21	Switch, Rocker
22	Screw, 6-20 x 3/8 (2)
23	Nameplate
24	Cylinder Assembly
25	Nut, Speed (2)
26	Relay, Motor
27	Clip, Wire
28	Breaker, Circuit (Includes Illus. 37)
29	Housing, Receptacle (2)
30	Transformer
31	Lead, Wire (7“)
32	Kit, Brush Replacement
33	303776 Whirlpool Dishwasher Screw
34	Clamp (2)
38	Tube, PVC 1-3/4“ O.D. x 3“
39	Seal, Motor (Top)
40	Nut, Speed (4)
41	WP488787 Whirlpool Refrigerator Screw
42	Cover
45	Clip, Retainer (2)
46	Retainer, Filter
47	Filter & Disk
48	Gasket, Filter
49	Clip, Filter Retaining
50	Gasket, Dirt Receptacle
51	Receptacle, Dirt
