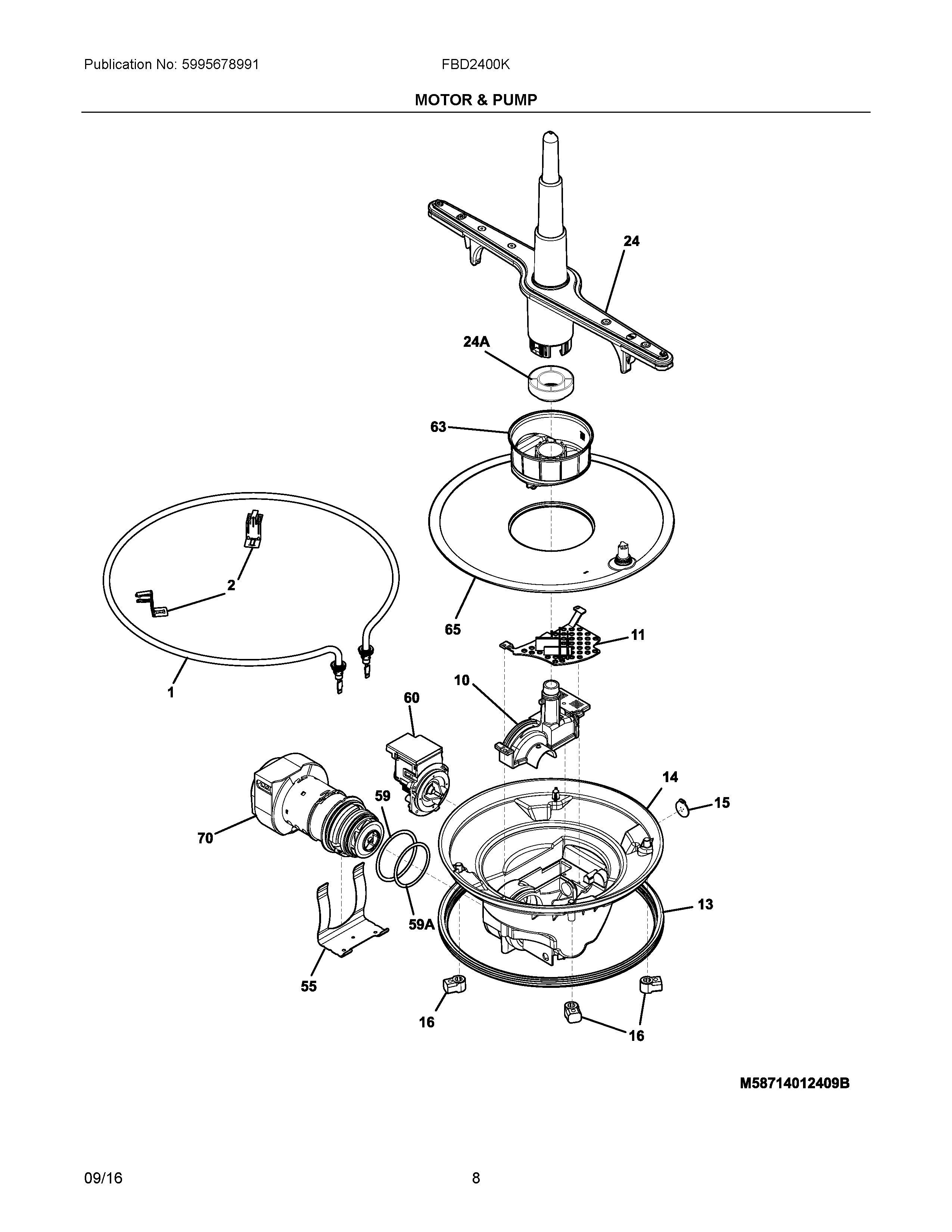

FBD2400KB10B 05 – MOTOR & PUMPadmin2025-04-26T08:54:49+00:00FBD2400KB10B 05 – MOTOR & PUMP ProductsPositionProductNI154783101 Frigidaire Dishwasher ScrewNI154779601 Frigidaire Dishwasher ScrewNIA154297701 Frigidaire Dishwasher ScrewNI154380601 Frigidaire Dishwasher Clamp AssemblyNIA154106202 Frigidaire Dishwasher Heater NutNIA154754901 Frigidaire Dishwasher ScrewNIA154741501 Frigidaire Dishwasher ScrewNIB154289801 Frigidaire Dishwasher Shield1154825001 Frigidaire Dishwasher Round Heater Heating Element2154465101 Frigidaire Dishwasher Heating Element Support Bracket10807114001 Frigidaire Dishwasher Cover11807111601 Frigidaire Sump Cover Assembly and Filter13154246801 Frigidaire Dishwasher Primary Gasket14807185501 Frigidaire Dishwasher Housing15807048001 Frigidaire Dishwasher Check Valve16154246502 Frigidaire Dishwasher Bracket245304518927 Frigidaire Dishwasher Lower Wash Spray Arm24A154335201 Frigidaire Dishwasher Lower Spray Arm Nut29154227811 Frigidaire Dishwasher Thermostat30154241101 Frigidaire Dishwasher Retainer555304534830 Frigidaire Dishwasher Bracket59A154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front 59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor60A00126401 Frigidaire Dishwasher Drain Pump Assembly635304506533 Frigidaire Dishwasher Filter Base655304506525 Frigidaire Dishwasher Filter Assembly70807473201 Frigidaire Dishwasher Motor and Pump Assembly
