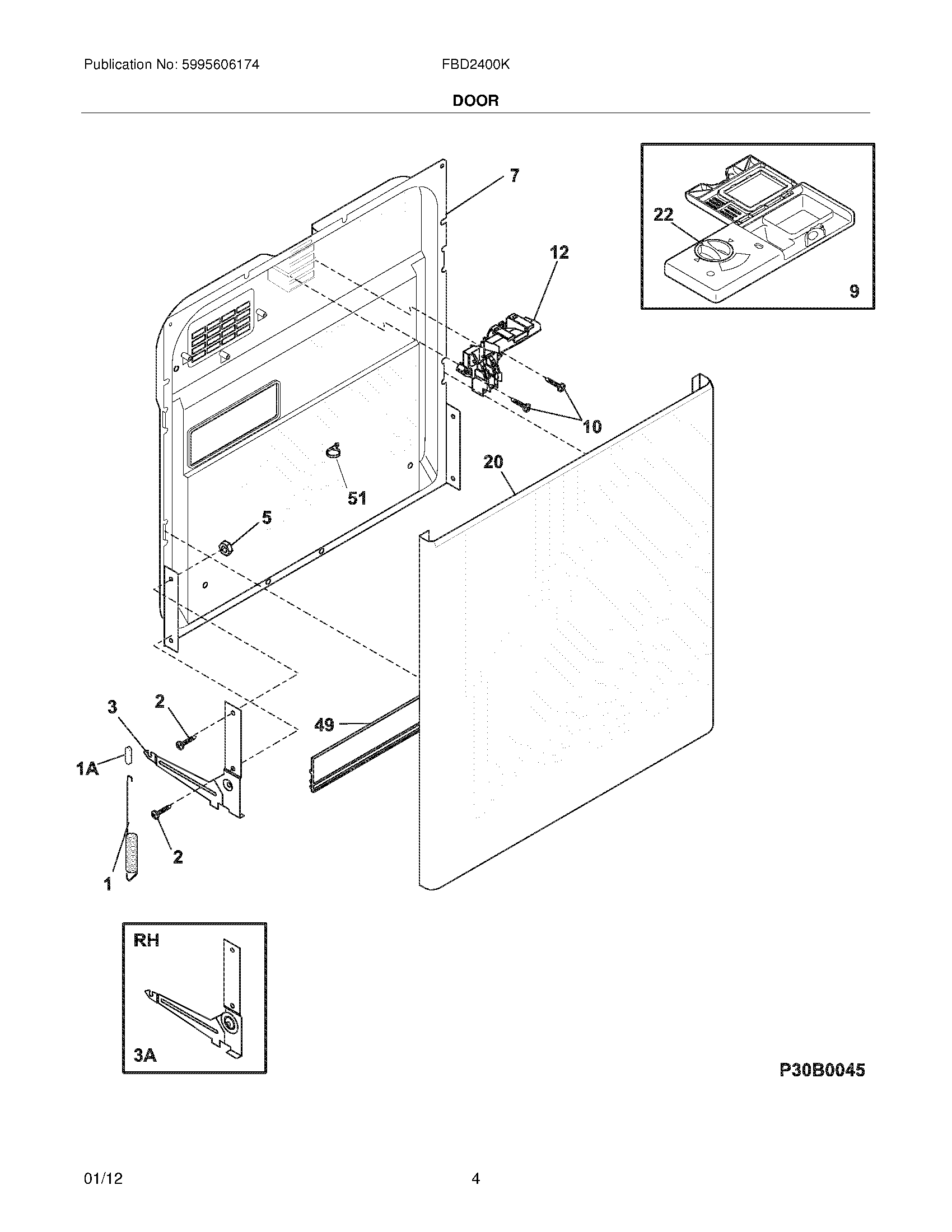

FBD2400KW3A 05 – DOOR

Products

Position	Product
NI	154294701 Frigidaire Dishwasher Screw
NI	5304525214 Frigidaire Dishwasher Shield
NI	154686401 Frigidaire Dishwasher Bearing
NI	154647101 Frigidaire Dishwasher Pin Hinge
NI	154754701 Frigidaire Dishwasher Screw
1	154430501 Frigidaire Dishwasher Door Spring
1A	154325201 Frigidaire Linkage Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
5	5303013272 Frigidaire Oven Nut
7	WCI 154494601
9	154574401 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
12	A00104102 Frigidaire Dishwasher Latch Assembly
20	154828801 Frigidaire Dishwasher Door
22	154388801 Frigidaire Dishwasher Rinse Aid Dispenser Cap
49	809006501 Frigidaire Bottom Seal/Gasket Door
51	WCI 154320301
