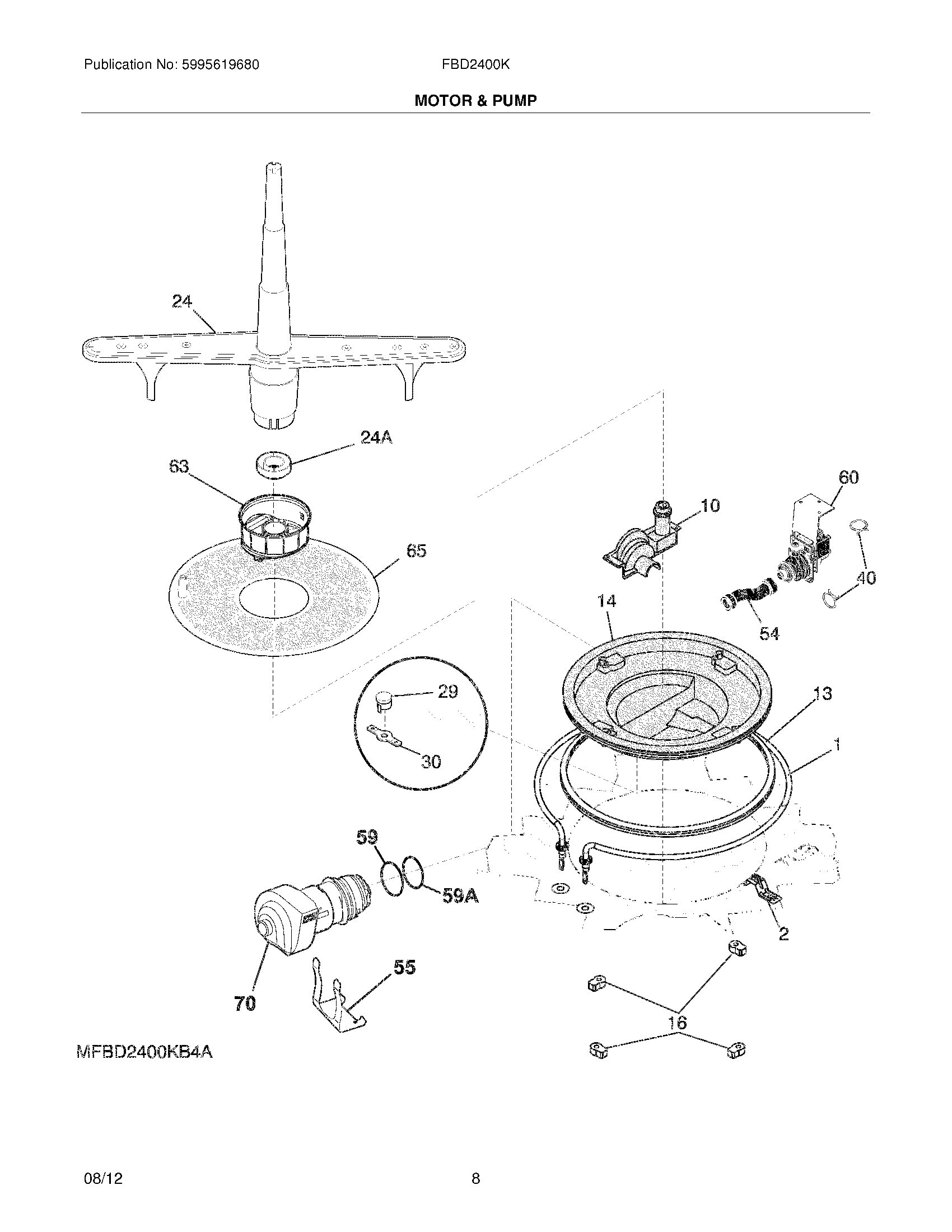

FBD2400KW4A 09 – MOTOR & PUMP

Products

Position	Product
NI	154783101 Frigidaire Dishwasher Screw
NI	WCI 154426201
NI	154581501 Frigidaire Dishwasher Screw
NI	154779601 Frigidaire Dishwasher Screw
NI	154754901 Frigidaire Dishwasher Screw
NI	154289801 Frigidaire Dishwasher Shield
NI	154106202 Frigidaire Dishwasher Heater Nut
NI	154297701 Frigidaire Dishwasher Screw
NI	154380601 Frigidaire Dishwasher Clamp Assembly
1	154825001 Frigidaire Dishwasher Round Heater Heating Element
2	154465101 Frigidaire Dishwasher Heating Element Support Bracket
10	WCI 154335301
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154462003
16	154246502 Frigidaire Dishwasher Bracket
24	5304518927 Frigidaire Dishwasher Lower Wash Spray Arm
24A	154335201 Frigidaire Dishwasher Lower Spray Arm Nut
29	WCI 154227810
30	154241101 Frigidaire Dishwasher Retainer
40	154348502 Frigidaire Dishwasher Clamp
40	154348401 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55	5304534830 Frigidaire Dishwasher Bracket
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59A	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60	A00126501 Frigidaire Dishwasher Motor and Drain Pump Assembly
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
70	154844001 Frigidaire Dishwasher Motor and Pump Assembly
