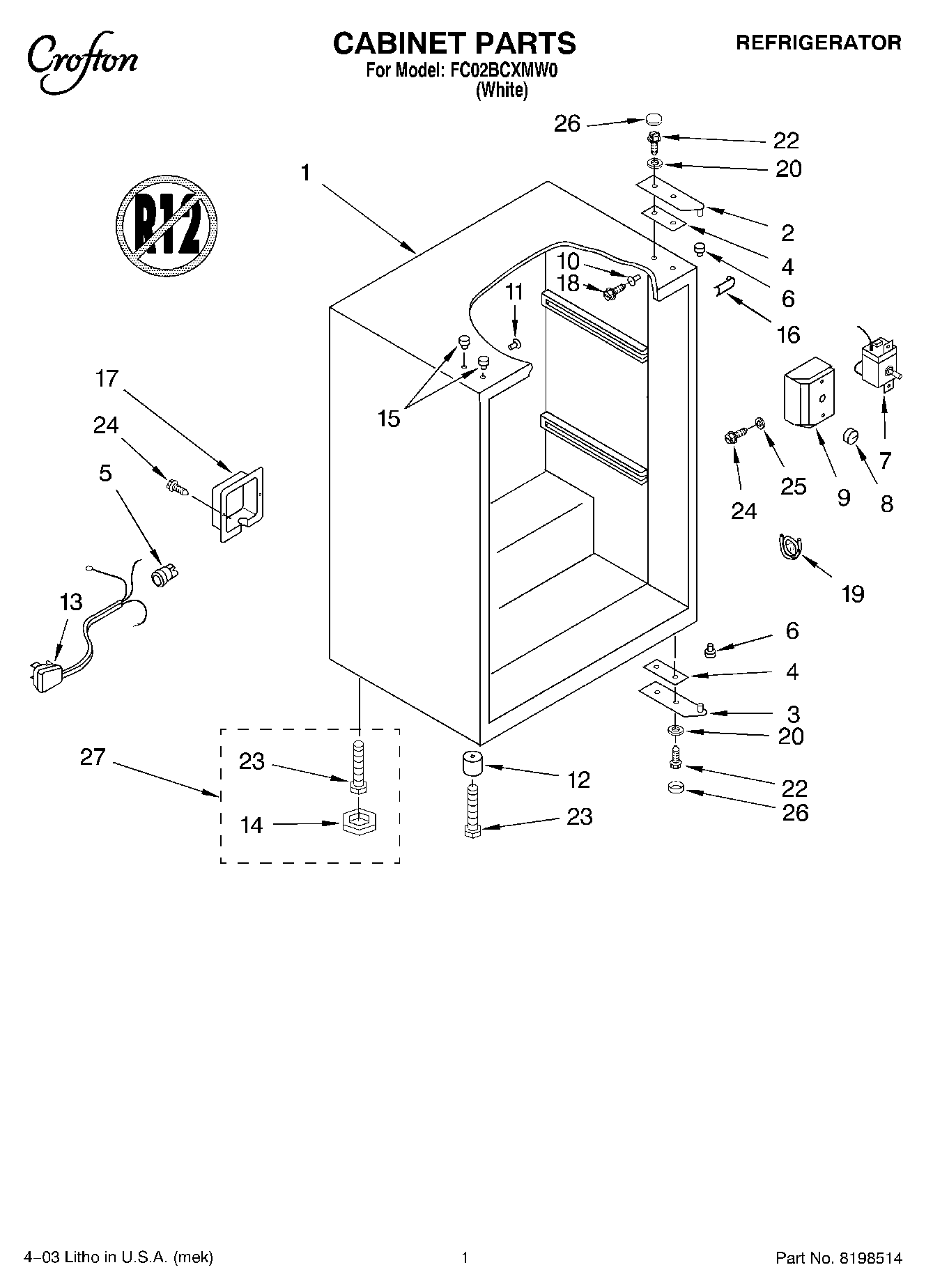

FC02BCXMW0 01 – CABINET PARTS

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	4312436 Whirlpool Door Hinge
3	4312505 Whirlpool Refrigerator Door Hinge
4	Shim, Hinge
5	Strain Relief
6	Bushing
7	Thermostat
8	Knob, Thermostat
10	Stud
11	Stud
12	4312445 Whirlpool Refrigerator Leveler
13	WPL 4312743
14	WPL 4312744
15	Control Box
16	Filler, Wrapper
17	Box, Junction
18	SCREW
19	Bulb, Thermostat
20	Washer
22	Screw
23	Leveler
24	Screw
25	Washer
26	Cover, Screw
27	Kit, Leg Leveler
