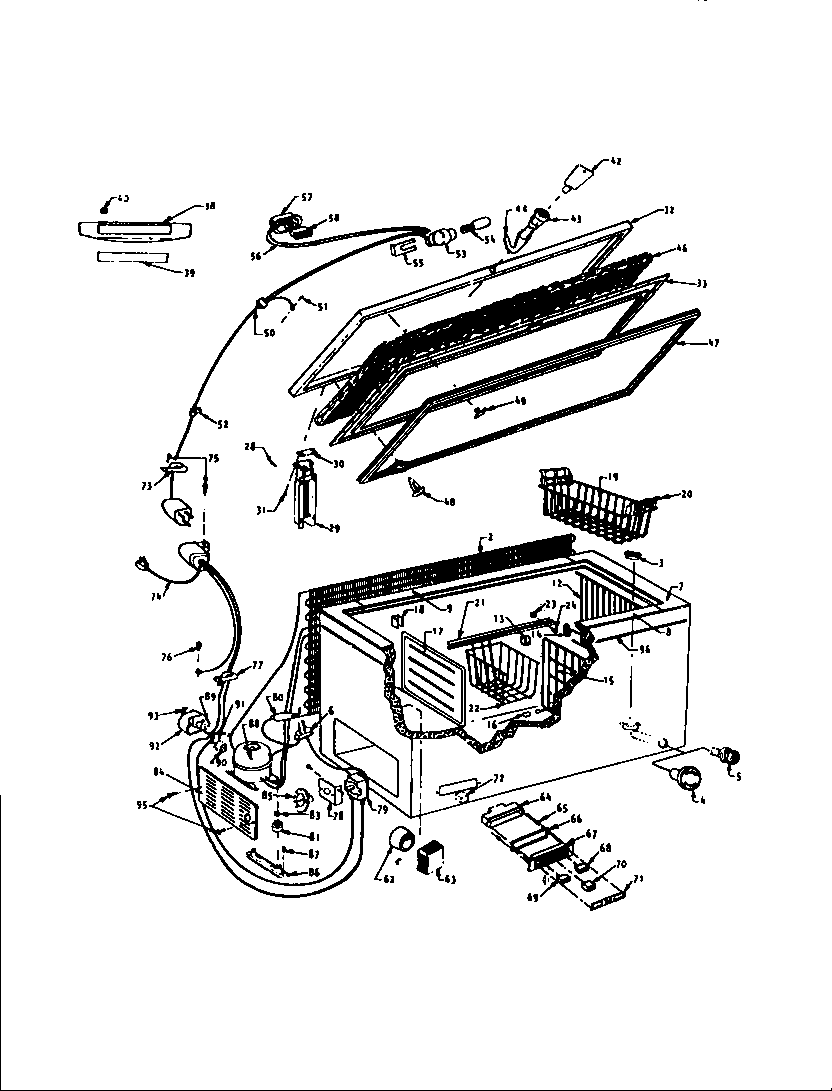

FC162JTW2 02 – CABINET, SYSTEM, UNIT

Products

Position	Product
2	5303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
4	PLUG-DRAIN
6	GROMMET
7	BREAKER-END (2)
8	WCI F300533
9	WCI F300540
19	WCI F128513
20	WCI F96894
28	SCREW HINGE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	SPACER-HINGE
31	SCREW-HINGE
32	PANEL-LID (WHITE TEXTURE)
33	INNER PANEL-WHITE
38	WCI F114336
39	WCI F128793
40	FASTENER HANDLE (2)
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI F300788
44	WCI F300791
46	WCI F114260-1
47	GASKET (BROWN)
48	5303212828 Frigidaire Refrigerator Primary Clip
74	HARNESS-W/ PWR CORD
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI F127315
79	CONTROL TEMP
80	DRIER-REGULAR
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP
84	PANEL
85	KNOB
86	SUPPORT
87	SCREW
88	WCI C620121
89	WCI F300398
90	WCI F300397
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
97	WCI F128777
98	5304464438 Frigidaire Compressor Run Capacitor
99	WCI F300579
