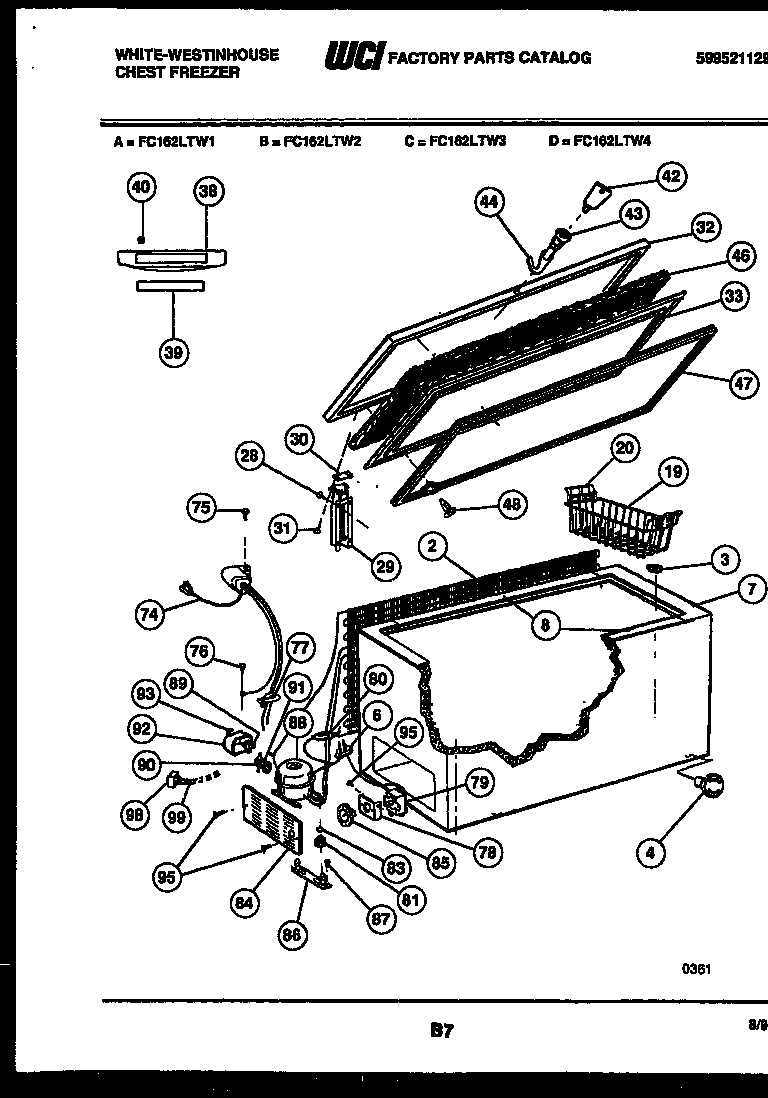

FC162LTW3 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI F120781
2	5303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
4	PLUG-DRAIN
6	WCI 06599967
7	WCI 3017635
8	WCI 3925012
19	BASKET
20	WCI 5303019003
28	WCI 3091426
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 08037852
31	SCREW
32	WCI 5303207510
33	WCI F000129176
38	WCI 09950054
39	INSERT HANDLE
40	FASTENER
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI G190358
44	WCI F300791
46	INSULATION
47	WCI 3017645
48	5303212828 Frigidaire Refrigerator Primary Clip
74	WCI 08017013
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI 08016760
79	WCI 08037987
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	WCI 08017004
85	WCI 3091432
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR WITH ELECTRICALS
89	WCI 6017753
90	WCI 08037789
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
98	CAPACITOR-RUN
99	WCI 3091425
