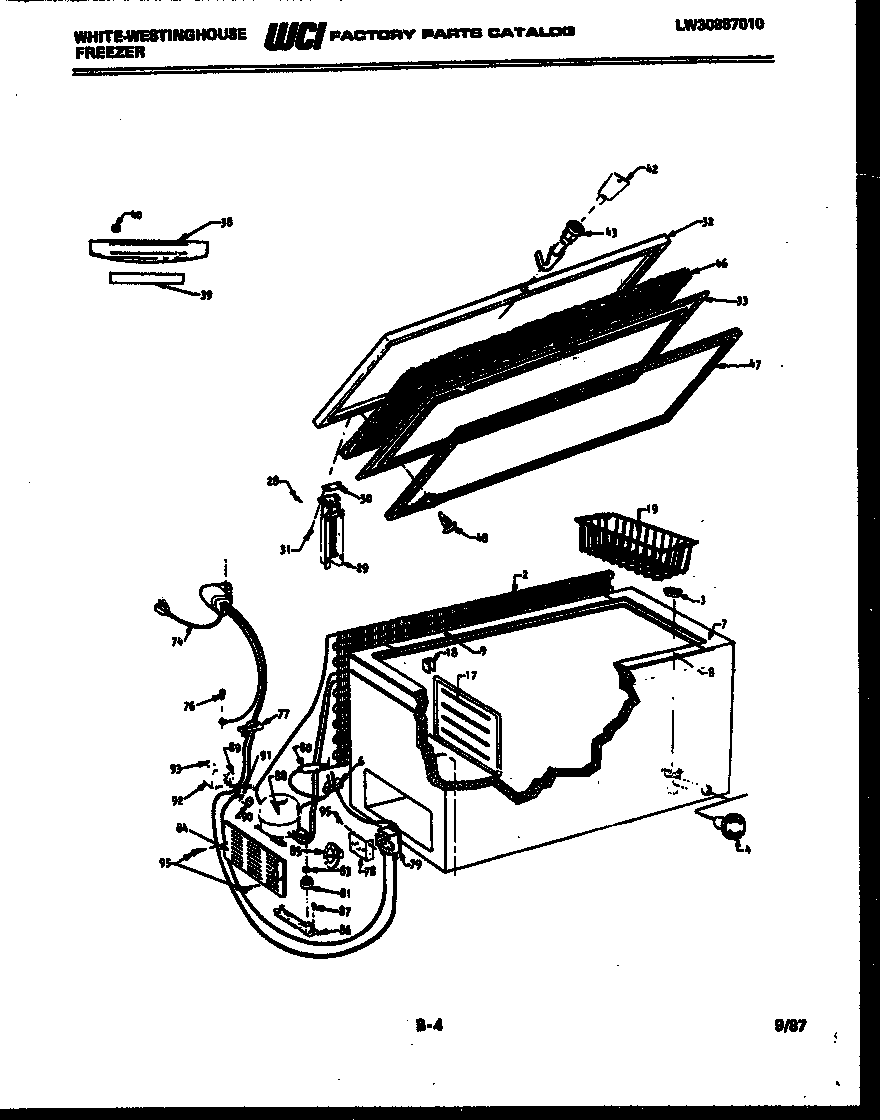

FC182KTW2 02 – CHEST FREEZER PARTS

Products

Position	Product
2	5303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
4	PLUG-DRAIN
6	WCI F300102
7	BREAKER-END (2)
8	WCI F300534
9	WCI F300541
17	WCI F129067
18	SUPPORTS DIVIDER (4)
19	WCI F128513
28	SCREW HINGE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	SPACER HINGE WING
31	SCREW (8)
32	LID EXTERIOR-WHITE
33	PANEL INNER-WHITE
38	WCI F118097
39	WCI F128793
40	FASTENER HANDLE (2)
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI R900927
46	WCI F114260-1
47	WCI F128176
48	5303212828 Frigidaire Refrigerator Primary Clip
74	HARNESS-W/ PWR CORD
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI F127315
79	CONTROL TEMP
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP
84	PANEL
85	KNOB
86	CONTROL KNOB
87	SCREW
88	COMPRESSOR W/ELECT.
89	WCI F126878-2
90	WCI F126879
91	WCI F300749
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
97	WCI F128958
