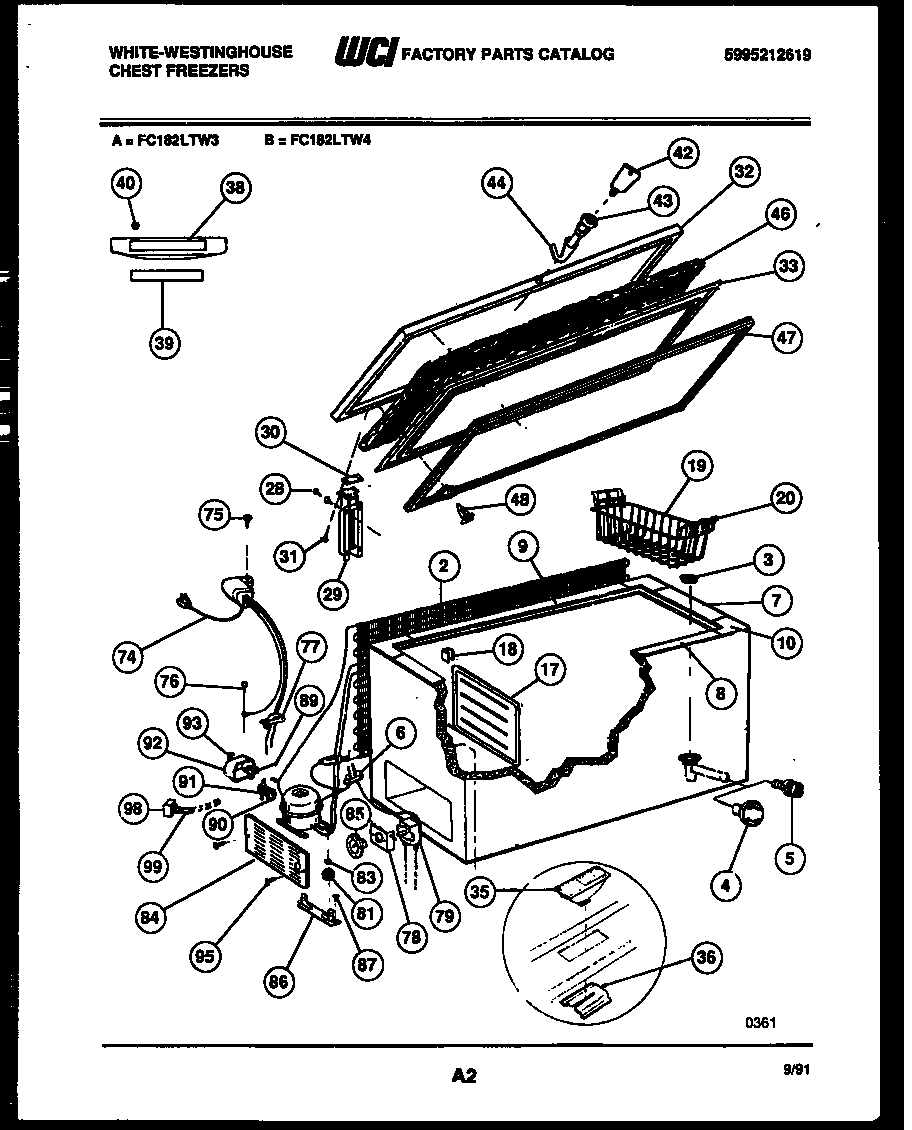

FC182LTW3 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI 5303280307
3	PLUG, DRAIN, LINER
4	WCI 5300128045
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	WCI 5303210235
9	BREAKER REAR
10	WCI 5303210238
17	WCI F129066
18	SUPPORTS DIVIDER (4)
19	BASKET
20	WCI 5303019003
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 08037853
31	SCREW HINGE BASE
32	LID EXTERIOR-WHITE
33	PANEL INNER-WHITE
35	WCI 5303210240
36	LATCH CATCH SUPPORT
38	WCI 5309950054
39	INSERT HANDLE
40	WCI 5309948647
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5300190358
44	WCI 5300300791
46	WCI 5300128901
47	GASKET LID-GRAY
48	5303212828 Frigidaire Refrigerator Primary Clip
74	WCI 5303212629
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI 5308016760
79	THERMOSTAT TEMP (2 TERM)
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	WCI 5303273113
85	WCI 5303091432
86	WCI 0816764
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR WITH ELECTRICALS
89	WCI 5303017753
90	WCI 5308037789
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95A	WCI F128958
95	216858001 Frigidaire Refrigerator Screw
98	CAPACITOR
99	WCI 5303091425
