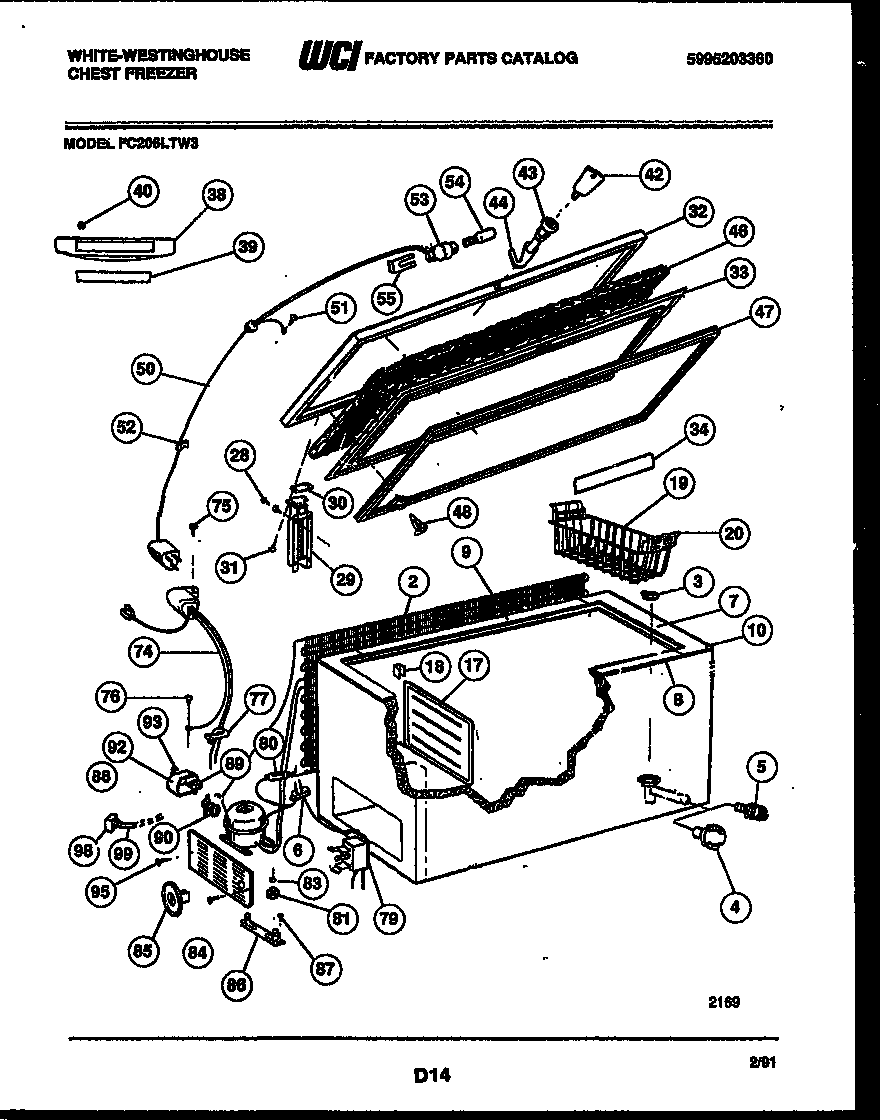

FC206LTW3 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI 530300173
3	PLUG, DRAIN, LINER
4	WCI 5300128045
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	WCI 5303210235
9	BREAKER REAR-GRAY
10	WCI 5303210238
17	WCI F129066
18	WCI 5306594584
19	BASKET
20	WCI 5303019003
28	SCREW HINGE BASE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	CLIP-PANEL (40)
31	WCI 5309950602
32	WCI 5312901264
33	PANEL INNER LID-WHITE
34	WCI 3019006
38	WCI 5309950054
39	WCI 5300128795
40	WCI 5309948647
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5300190358
44B	LATCH CATCH SUPPORT
44A	WCI 5303210240
44	WCI 5300300791
46	WCI 5300128901
47	GASKET LID-GRAY
48	5303212828 Frigidaire Refrigerator Primary Clip
50	HARNESS LID
52	WCI 09950610
53	WCI 5306599955
54	5304517886 Frigidaire Refrigerator Light
55	PLATE, BACKUP, LIGHT SWITCH
74	WCI 5303212612
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	5304496560 Frigidaire Refrigerator Cold Control Kit
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	WCI 5303212647
85	WCI 5303270910
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR W/ ELECTRICALS-SERVICE
89	WCI 5303017753
90	WCI 5303206836
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95A	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
95	216858001 Frigidaire Refrigerator Screw
98	CAPACITOR
99	WCI 5303091425
