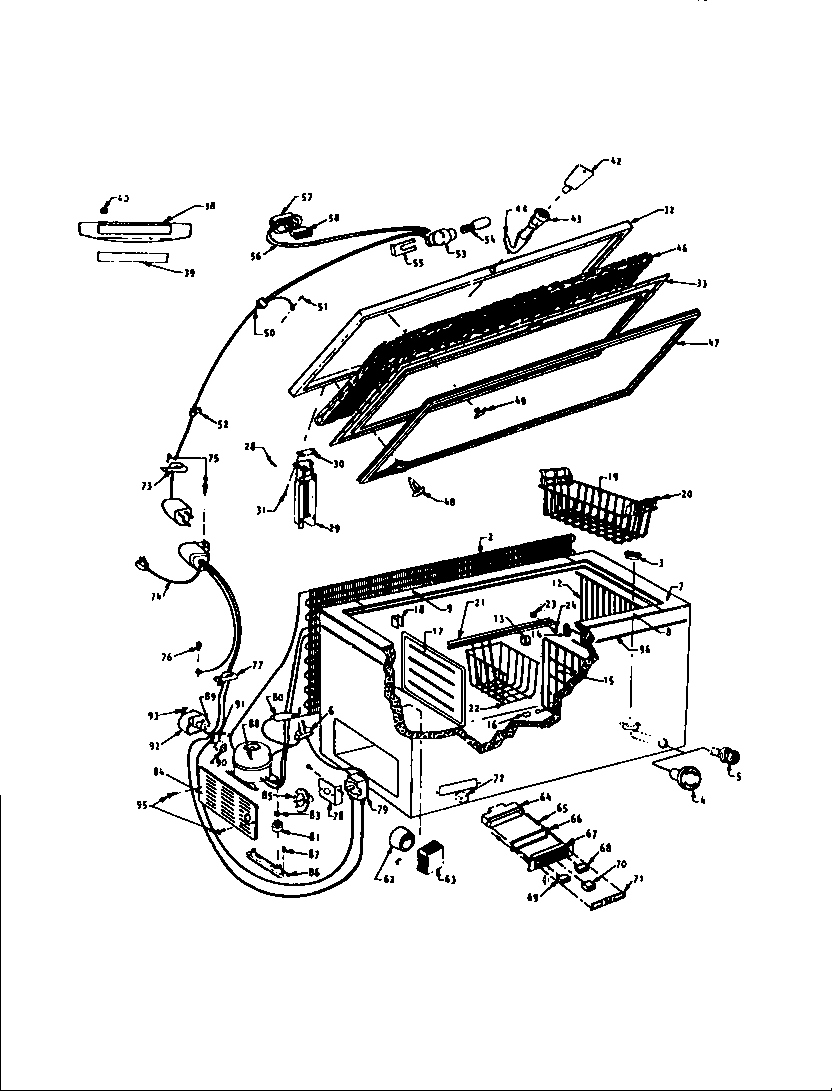

FC236JTW2 02 – CABINET, SYSTEM, UNIT

Products

Position	Product
2	5300300173 Frigidaire Refrigerator Condenser (O/S2)
4	PLUG-DRAIN
5	HOSE ADAPTER
6	GROMMET
7	BREAKER-END (2)
8	WCI F300536
9	WCI F300543
12	WCI F128270
13	WCI F128286
14	WCI F128362
15	WCI F128287
16	WCI F81586
17	WCI F129067
18	SUPPORT (4)
19	BASKET
20	WCI F129152
23	WCI F50144
28	SCREW HINGE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	SPACER (2)
31	SCREW-HINGE
32	WCI F129131-S
33	WCI F129178
38	WCI F118097
39	WCI F128794
40	FASTENER HANDLE (2)
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI F300788
44	WCI F300791
46	WCI F114260-1
47	WCI F128168
48	5303212828 Frigidaire Refrigerator Primary Clip
49	CLIP PANEL AND LOCK
52	RETAINER LEAD WIRE
53	WCI F94491
54	WCI F92472
56	WCI F94494
57	WCI F126469
58	WCI F128520
74	WIRE HARNESS
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI F127315
79	CONTROL TEMP
80	DRIER-REGULAR
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP
84	PANEL
85	KNOB
86	SUPPORT
87	SCREW
88	WCI C620123
89	WCI F300398
90	WCI F300397
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
97	WCI F128777
98	5304464438 Frigidaire Compressor Run Capacitor
99	WCI F300579
