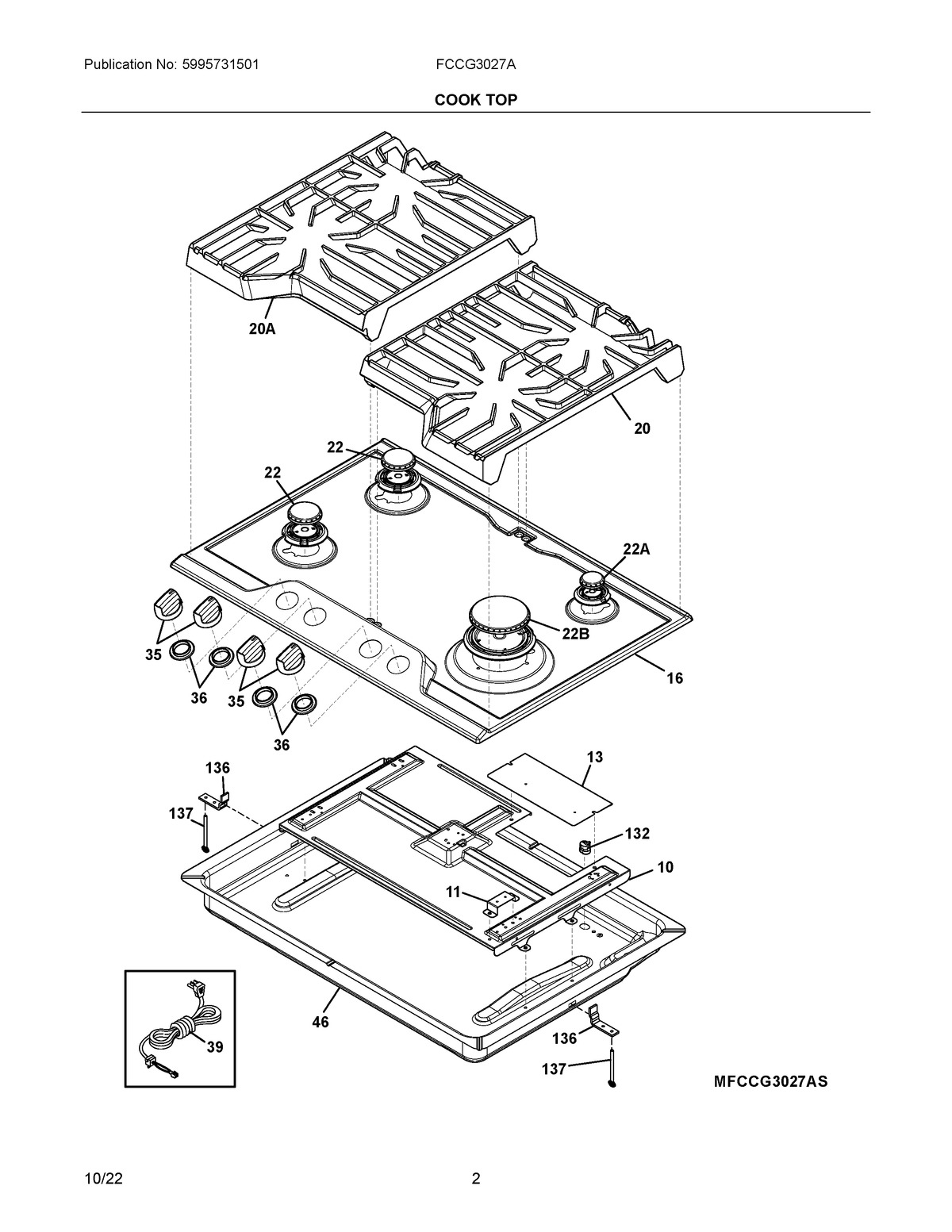

FCCG3027AS 02 – COOK TOP

FCCG3027AS 02 – COOK TOP

Written by

in

FCCG3027AS 02 – COOK TOP

Products

PositionProduct
NI305338604 Frigidaire Screw
NI305338602 Frigidaire Screw
NIA305452800 Frigidaire Screw
10SHIELD, MAIN HEAT
11SPACER, SHIELD, HIGH
165304533602 Frigidaire Maintop
20A5304533600 Frigidaire Grate
205304533601 Frigidaire Grate
22B5304533597 Frigidaire Range Cap Assembly
22A5304533595 Frigidaire Range Cap Assembly
225304533596 Frigidaire Range Cap
355304533603 Frigidaire Knob
36COVER, LED
39305574902 Frigidaire Power Cord
46BOX, BURNER
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
