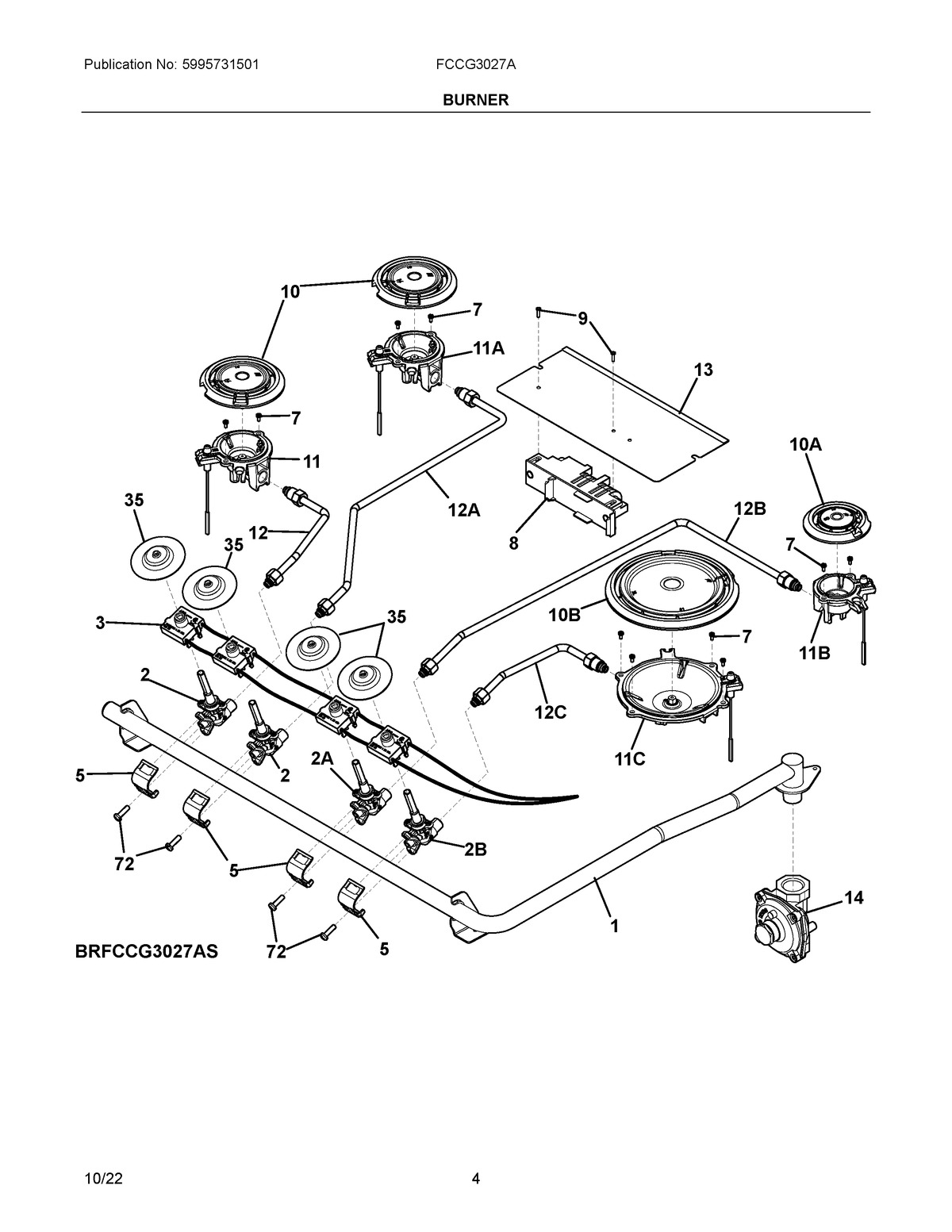

FCCG3027AS 03 – BURNER

FCCG3027AS 03 – BURNER

Written by

in

FCCG3027AS 03 – BURNER

Products

PositionProduct
NI5304533598 Frigidaire LP Conversion
NIGASKET, VALVE STEM
NIB305452800 Frigidaire Screw
NIACA
NIA5304516456 Frigidaire Wire
1MANIFOLD TUBE, ASSEMBLY
25304527639 Frigidaire Valve
2A5304533576 Frigidaire Valve
2B5304533577 Frigidaire Valve
3SWITCH HARNESS
5357733402 Frigidaire Oven Bracket
7SCREW, BURNER, STAINLESS
85304505695 Frigidaire Oven Module
9305338602 Frigidaire Screw
10BCROWN,BURNER,XTRA LARGE
10A5304533592 Frigidaire Range Crown
105304533593 Frigidaire Range Crown
11CIgniter/Orifice
115304533583 Frigidaire Igniter/Orifice
11AIGNITOR/ORIFICE
11B5304533582 Frigidaire Igniter/Orifice
12BTUBE ASSEMBLY
12ATUBE ASSEMBLY, BURNER, LH REAR
12TUBE ASSEMBLY, BURNER, LH FRONT
12CTUBE ASSEMBLY, BURNER, RH FRONT
13COVER, SPARK MODULE
145304533599 Frigidaire Regulator
355304508440 Frigidaire Bushing
725304508436 Frigidaire Oven Screw
