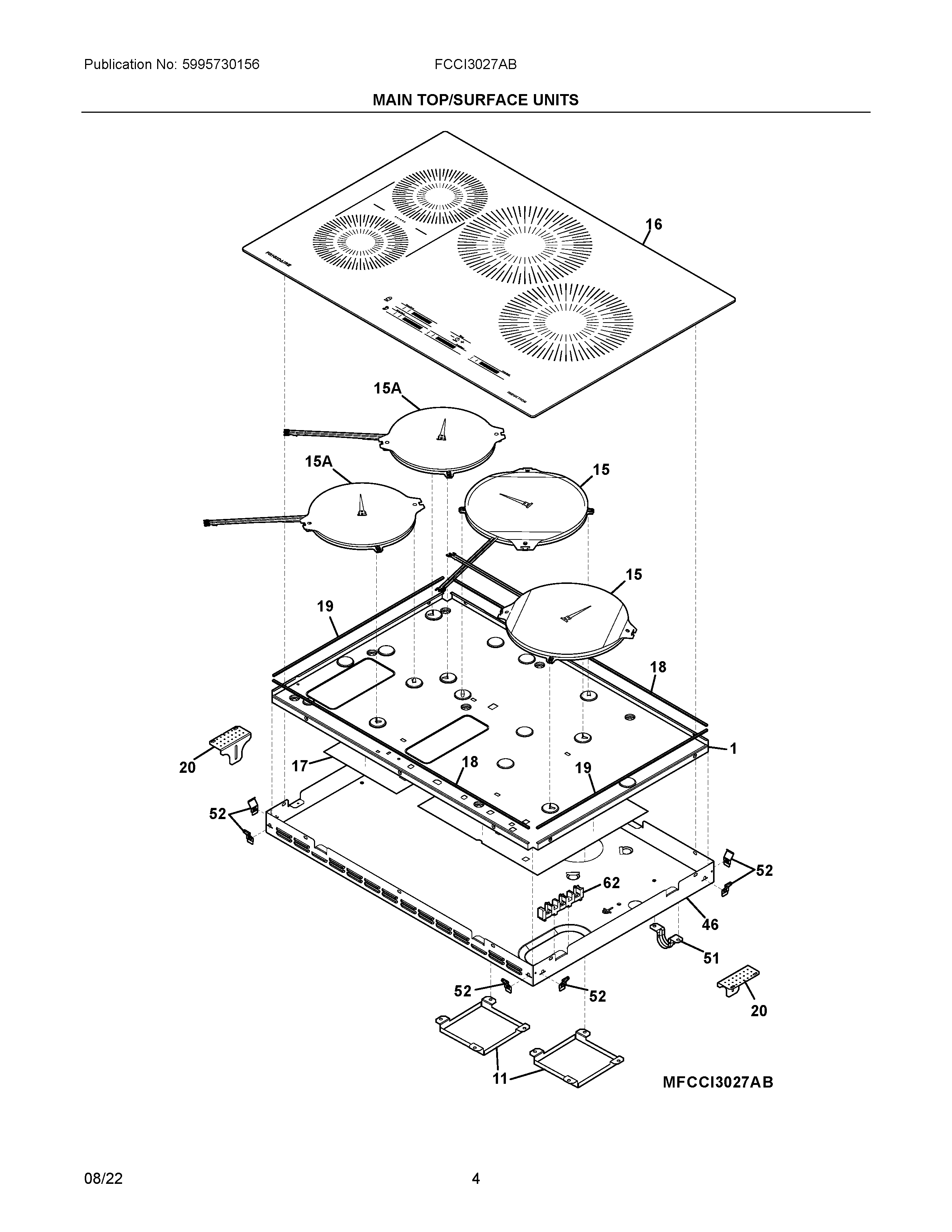

FCCI3027AB 03 – MAIN TOP/SURFACE UNITS

FCCI3027AB 03 – MAIN TOP/SURFACE UNITS

Written by

in

FCCI3027AB 03 – MAIN TOP/SURFACE UNITS

Products

PositionProduct
NIASCREW, 8 X 5/8, SPARK MODULE
NIANUT, TERMINAL BLOCK, (2)
NIBSCREW, M4
NIC305452800 Frigidaire Screw
NI5304462994 Frigidaire Oven Screw
NISCREW, ST, 4.2 : 12, (9)
NIB5303307980 Frigidaire Oven Screw
NI330447900 Frigidaire Oven Screw
1CARRIER, INDUCTION COILS
11COVER, FAN
15A357226370 Frigidaire Oven Heating Element
15357227574 Frigidaire Oven Element
165304535434 Frigidaire Maintop
17INSULATION, MICA SHEET
18TAPE, FOAM, LONG
19TAPE, FOAM, SHORT
20BRACKET
465304527608 Frigidaire Box
51318389600 Frigidaire Bracket Assembly
52387174602 Frigidaire Oven Bracket
625304409888 Frigidaire Oven Terminal Block with Hardware
