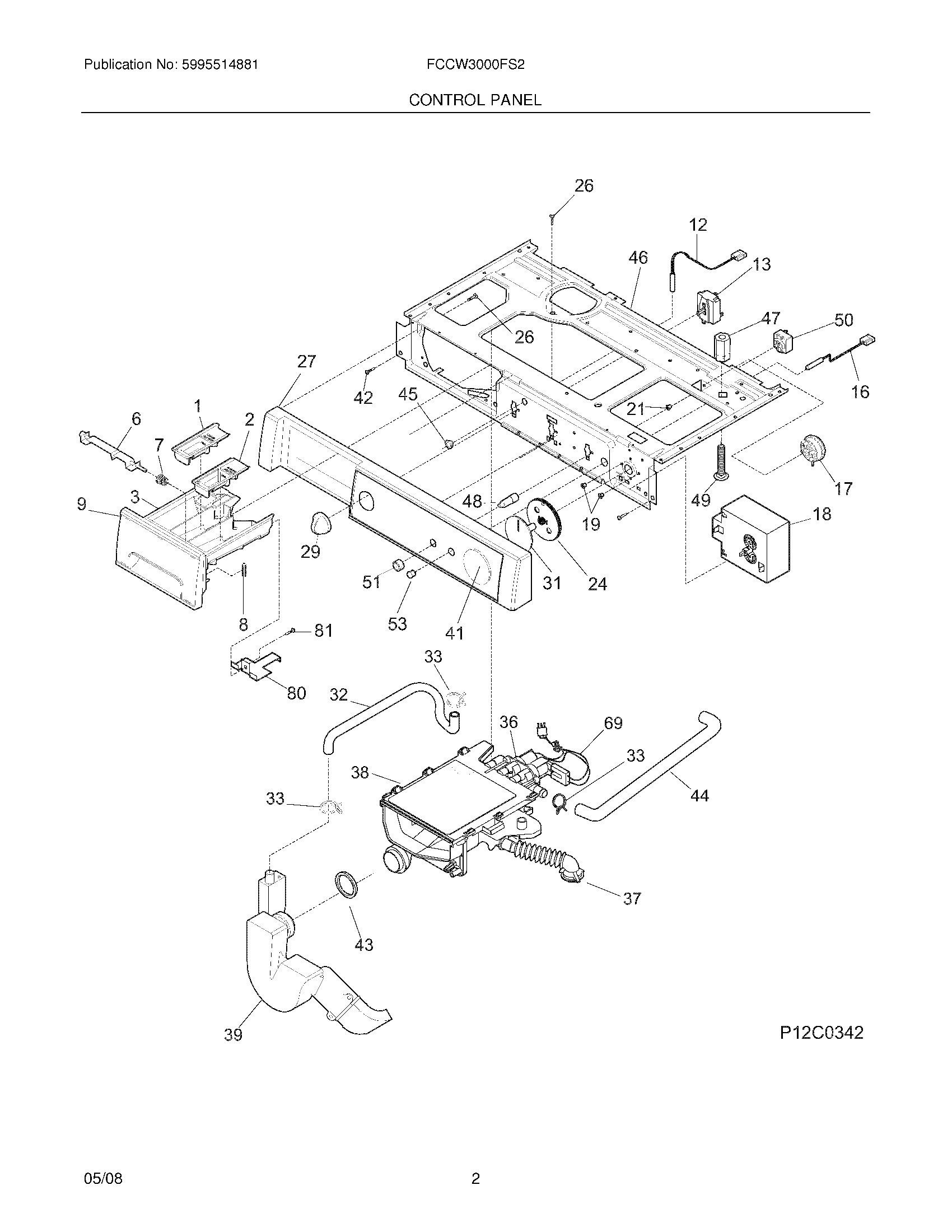

FCCW3000FS2 03 – CONTROL PANEL

Products

Position	Product
NI	Clamp,siphon/bellows
NI	WCI 131931201
1	WCI 131272100
2	WCI 131272000
3	WCI 131271910
6	Latch,disp drawer hdl
7	WCI 131427500
8	WCI 131373800
9	131689600 Frigidaire Handle
12	WCI 131505902
13	WCI 134603400
16	Lamp,status light
17	WCI 134438301
18	134812400 Frigidaire Timer
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
24	WCI 134549100
26	WCI 131823400
27	WCI 131691033
29	WCI 131264500
31	WCI 134549201
32	WCI 131786100
33	134737300 Frigidaire Clamp
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
38	WCI 131803710
39	WCI 131863300
41	WCI 131696601
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131786000
45	Bushing,idler
46	WCI 134191412
47	WCI 131981900
48	WCI 131686000
49	WCI 131686601
50	WCI 134902000
51	WCI 131970200
53	Lens,status light ,clear
69	WCI 134993700
80	WCI 131734300
81	131302800 Frigidaire Drum Vane Screw
