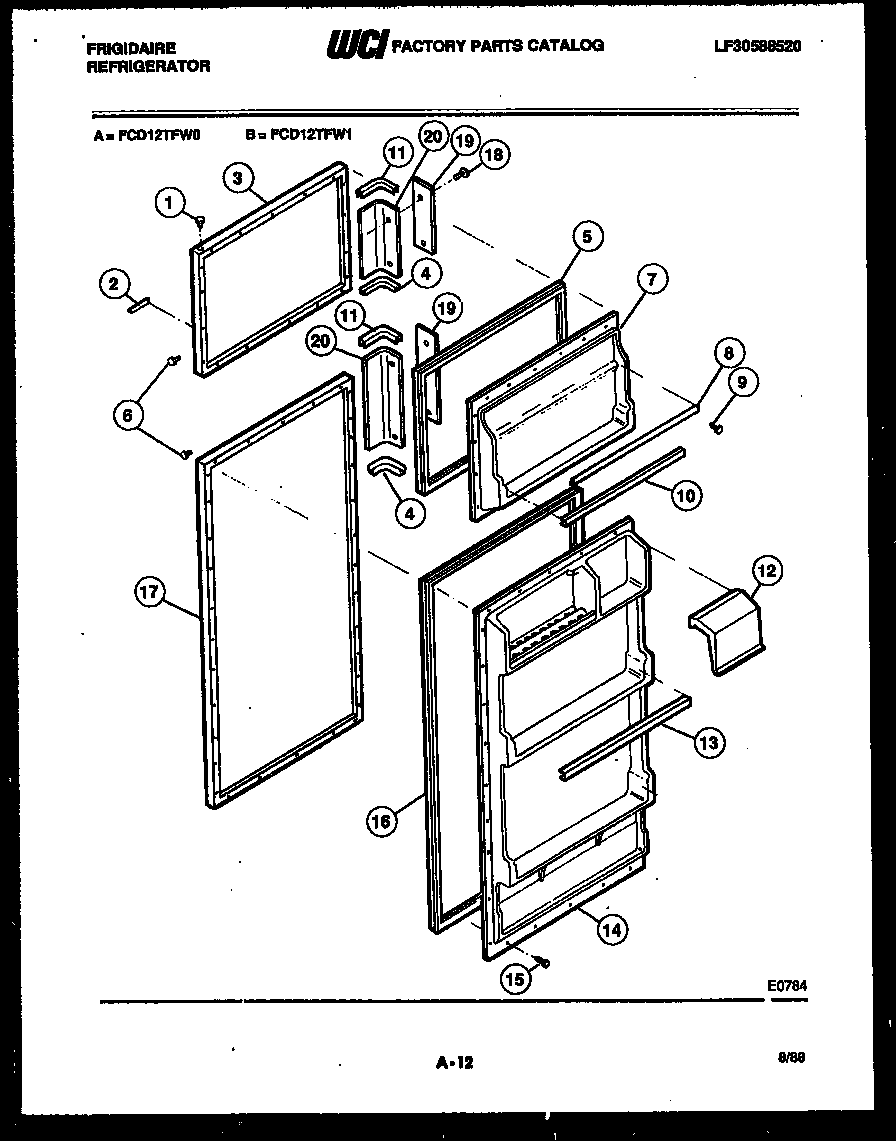

FCD12TFA1 02 – DOOR PARTS

Products

Position	Product
1	WCI 800175
2	WCI 3018385
3A	HINGE BEARING (8)
3	WCI 3916158
4	END CAP-BOTTOM (2)
5	WCI 3019095
6	PLUG-HANDLE-AVOCADO
7	WCI 3019085
8	WCI 3019086
10	WCI 3019087
11	END CAP-TOP (2)
12	WCI 3019088
13	WCI 3019089
14	WCI 3019090
15	SCREW (3)
16	WCI 3019091
17	WCI 3916163
18	SCREW-HANDLE MOUNTING (4)
19	TRIM-HANDLE (2)
20	HANDLE ASSEMBLY WITH CAP & TRIM (2)
