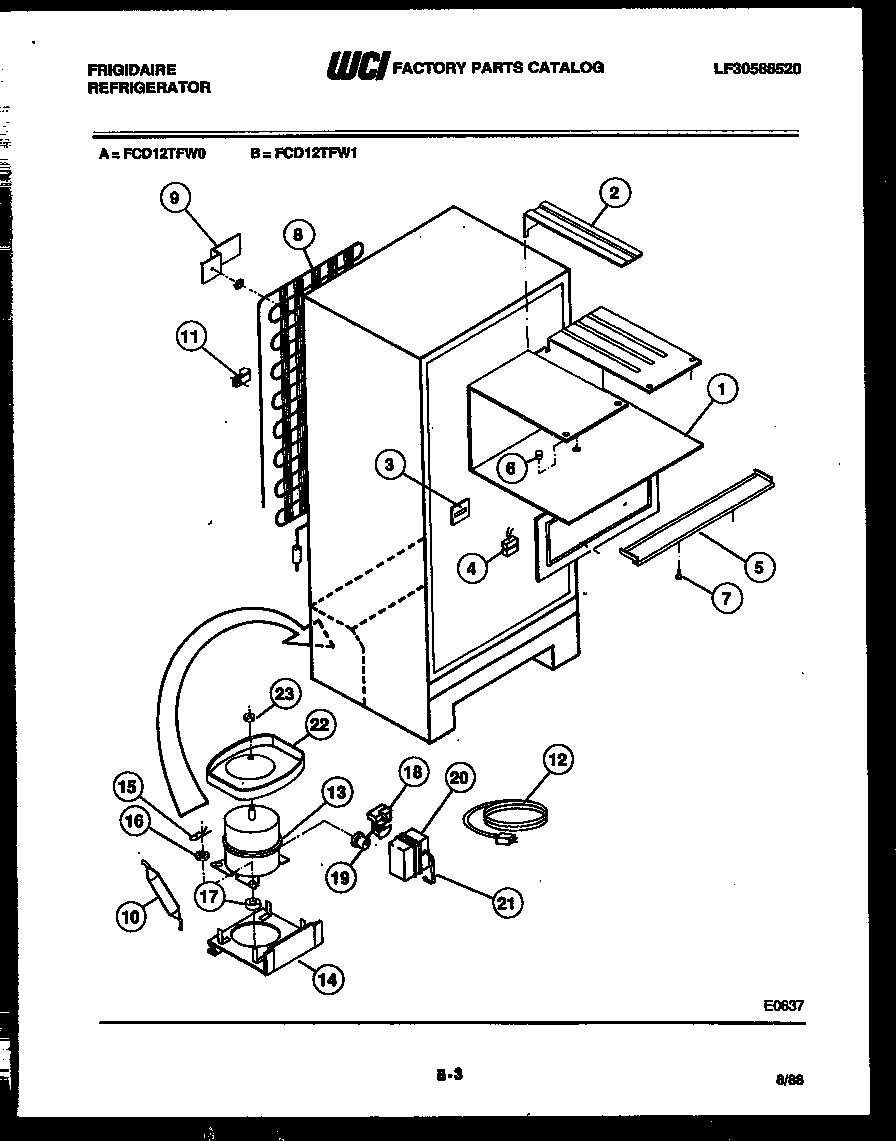

FCD12TFW0 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*18114	PAN RETAINER KIT-SERVICE
*18114	WCI 3200757
*18114	WCI 9960003
1	WCI 8016623
2	WCI 3200734
3	WCI 8009792
4	WCI 8016621
5	WCI 86512
6	WCI 8006983
7	SCREW-TOP MOUNTING (3)
8	WCI 8000997
9	BRACKET-CONDENSER MOUNTING (4)
10	WCI 8000027
11	CLAMP-CABLE (3)
12	WCI 8000064
13	WCI 3916008
14	WCI 8009596
15	CLIP (4)
16	WASHER (4)
17	WCI 8008778
18	WCI 3015178
19A	CLIP-OVERLOAD
19	WCI 3015179
20	WCI 8006982
21	WCI 8000117
22	DEFROST PAN-SERVICE COMPRESSOR
23	LOCK NUT-PAN MOUNTING
