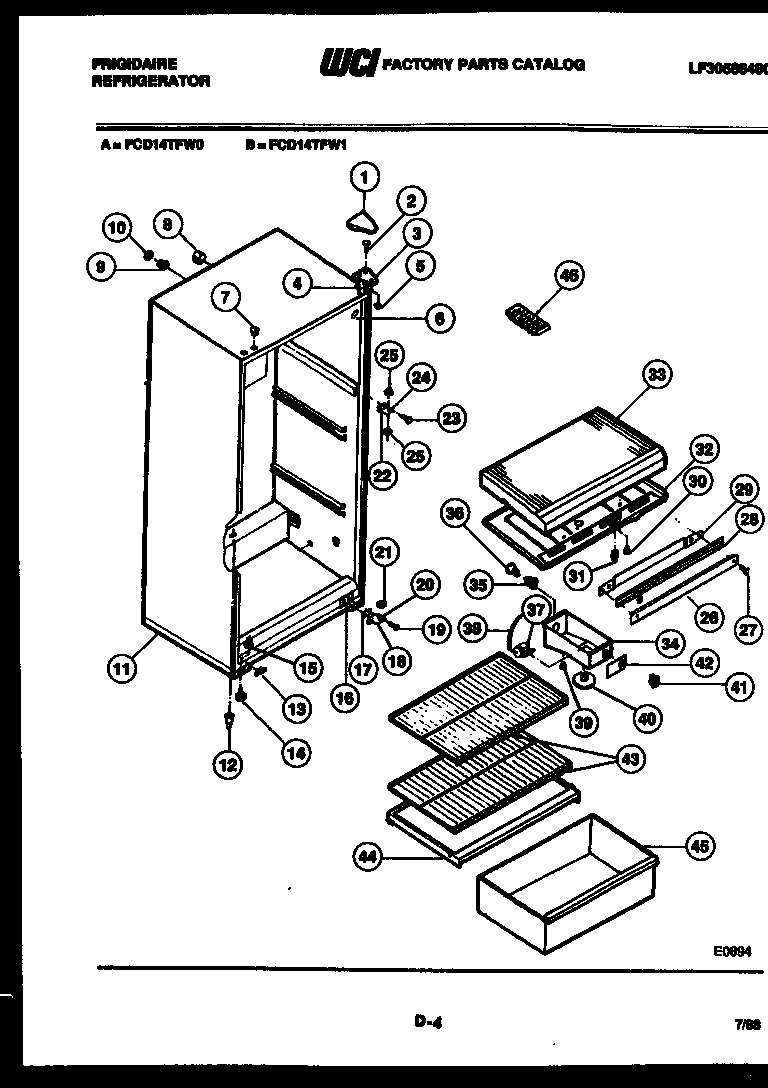

FCD14TFH1 03 – CABINET PARTS

Products

Position	Product
1	COVER-HNG-WEAT
2	SCREW-HINGE MOUNTING (2)
3	WCI 8012843
4A	PLATE-TAPPING (2)
4	WCI 8012829
6	WCI 8003617
7	WCI 8007127
8	WCI 8000004
9	WCI 8006970
10	WCI 8006971
11	WCI 8010090
12	WCI 8003605
13	WCI 8003585
14	SCREWS LEVELING (4)
15	WCI 8003584
16	TAPPING PLATE (4)
17	SHIM-LOWER HINGE
18	BRACKET-HNG
19	SCREW-HINGE MOUNTING
20	PIN-LOWER HINGE
21	WASHER-1/4 NYLON (3)
22	WCI 8000757
24	WCI 8000184
25	WASHER-5/16 NYLON
26B	WCI 8003608
26A	WCI 8003607
27	SCREW-HINGE/MULLION (4)
28	WCI 8017408
29	WCI 8003604
30	SCREW-TOP MOUNTING (3)
31	SWITCH, LIGHT
32	WCI 3016980
33	WCI 8000986
34	WCI 8009730
34A	SCREW (5)
35	WCI 8000129
36	LIGHT BULB
37	WCI 8006984
37A	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
38	WCI 8010035
39	WCI 8006981
40	WCI 8006978
41	WCI 8016615
42	LABEL-CONTROL BOX
43	WCI 3018389
44	WCI 3018425
45	WCI 3019092
46	ICE CUBE TRAY (2)
